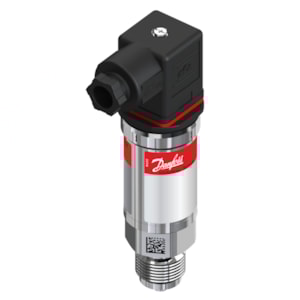

CẢM BIẾN ÁP SUẤT DANFOSS MBS 4201, 0 - 4bar, 0 - 58psi - C/N 060G4305

Gross weight

0.26 Kilogram

Net weight

0.214 Kilogram

Volume

0.424 Liter

EAN

5702423157723

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Approval

ATEX

China RoHS compliance

Yes

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

212 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes

EU RoHS exemption clause

No

EX Sales text

Ex iA IIC T5..T4 Ga/Gb

Flush diaphragm

No

High Clipping Level

22.4

Identical product

060G4305

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

International Article Number

5702423157723

Intrinsically safe

Yes

Low Clipping level

3.6

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

24 bar

Overload pressure max. [psi]

348 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/2

Pressure connection standard

EN 837

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

4 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

58 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

No

Quantity per packing format

14 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 4201-1611-A1AB08-0

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [min]

10 V

Supply voltage [V] DC [min]

10 V

Type

MBS 4201

UK RoHS compliance

Yes
