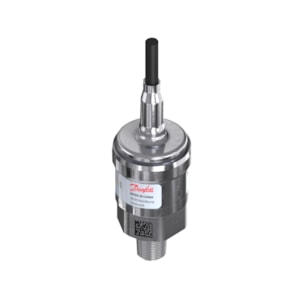

CẢM BIẾN ÁP SUẤT DANFOSS MBS 3050, 0 - 207bar, 0 - 3000psi - C/N 060G3956

Gross weight

0.274 Kilogram

Net weight

0.237 Kilogram

Volume

1.259 Liter

EAN

5702423225699

+ output

White

+ supply

Red

- common

Black

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-22 °F

Approval

ATEX

Approval comments

ATEX Ex ec IIA T4 Gc

Autofrettage Pressure

1600 bar

Cable length [in]

79 in

Cable length [m]

2 m

China RoHS compliance

Yes exceed limitations

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension 50 cm)

Electrical conn. comments

Screened

Electrical connection

Cable

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

No

Flush diaphragm

No

High Clipping Level

6.25

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

International Article Number

5702423225699

Intrinsically safe

No

Low Clipping level

0.1

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Voltage

Output signal [V] [max]

5.5 V

Output signal [V] [min]

0.5 V

Overload pressure max. [psi]

21750 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4-18

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [max]

207 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

3000 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

Yes

Quantity per packing format

8 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 3050-763D-A3AC04-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

Supply voltage [V] DC [min]

9 V

Type

MBS 3050

UK RoHS compliance

Yes
