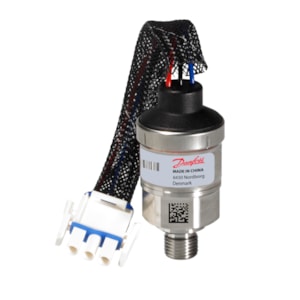

CẢM BIẾN ÁP SUẤT DANFOSS MBS 3050, 0 - 250bar, 0- 3625psi - C/N 060G3708

Gross weight

0.158 Kilogram

Net weight

0.141 Kilogram

Volume

0.424 Liter

EAN

5702423192618

+ output

Pin 2

+ supply

Pin 1

- common

Pin 3

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Autofrettage Pressure

1600 bar

China RoHS compliance

Yes exceed limitations

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension 50 cm)

Electrical conn. comments

Flying leads

Electrical conn. Male/Female

Male

Electrical connection

AMP Mate-N-Lok

Electrical connection size

3 pin

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

No

Flush diaphragm

No

High Clipping Level

6.75

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

International Article Number

5702423192618

Intrinsically safe

No

Low Clipping level

0.1

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Voltage

Output signal [V] [max]

6 V

Output signal [V] [min]

1 V

Overload pressure max. [bar]

600 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E; ISO 1179-2 (Form E)

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

250 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

3625 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

Yes

Quantity per packing format

14 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 3050-3434-D6GB04-2

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

Supply voltage [V] DC [min]

9 V

Type

MBS 3050

UK RoHS compliance

Yes
