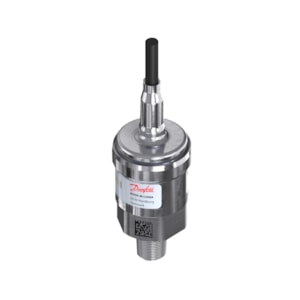

CẢM BIẾN ÁP SUẤT DANFOSS AKS 32, 0 - 34.5bar, 0 - 500psi - C/N 060G2033

Gross weight

0.426 Kilogram

Net weight

0.363 Kilogram

Volume

1.274 Liter

EAN

5702422112112

+ output

Green

+ supply

Red

- common

White

Accuracy, max. [±FS%]

0.8 %

Accuracy, typical [±FS%]

0.3 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX; GOST POCC; cUR

Approval comments

ATEX Ex ec IIA T4 Gc

Approval standard

6967179; E227388; E31024

Cable length [in]

196 in

Cable length [m]

5 m

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension 50 cm)

Electrical conn. comments

Screened

Electrical connection

Cable

Enclosure rating IP

IP67

EU RoHS compliance

Out of scope

Flush diaphragm

No

High Clipping Level

6.75

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

International Article Number

5702422112112

Intrinsically safe

No

Low Clipping level

0.1

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Voltage

Output signal [V] [max]

6 V

Output signal [V] [min]

1 V

Overload pressure max. [psi]

800 psi

Packing format

Multi pack

Pressure connection size

1/8-27

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [max]

34.5 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

500 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

No

Quantity per packing format

8 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

AKS 32-6634-D1AC02-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

Supply voltage [V] DC [min]

9 V

Type

AKS 32

UK RoHS compliance

Out of scope
