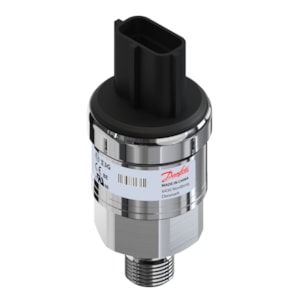

CẢM BIẾN ÁP SUẤT DANFOSS MBS 3050, 0 - 40bar, 0 - 580psi - C/N 060G1685

Gross weight

0.138 Kilogram

Net weight

0.125 Kilogram

Volume

0.251 Liter

EAN

5702423141081

+ output

Pin 3

+ supply

Pin 1

- common

Pin 2

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

China RoHS compliance

Yes exceed limitations

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension 50 cm)

Electrical conn. comments

Integrated

Electrical conn. Male/Female

Male

Electrical connection

AMP Econoseal, J-series

Electrical connection size

3 pin

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

No

Flush diaphragm

No

High Clipping Level

92

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

International Article Number

5702423141081

Intrinsically safe

No

Low Clipping level

4

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Ratio metric

Overload pressure max. [bar]

40 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection notes

Special

Pressure connection size

1/4

Pressure connection standard

DIN 3852-G

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

40 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

580 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

Yes

Quantity per packing format

20 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 3050-2636-G1FB04-4

Supply voltage [V] DC [max]

6 V

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

5 V

Supply voltage [V] DC [min]

4.5 V

Type

MBS 3050

UK RoHS compliance

Yes
