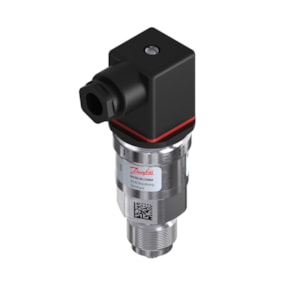

CẢM BIẾN ÁP SUẤT DANFOSS MBS 33, 0 - 100bar, 0 - 1450psi - C/N 060G1259

Gross weight

0.233 Kilogram

Net weight

0.186 Kilogram

Volume

0.411 Liter

EAN

5702423063024

+ output

Pin 3

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

0.8 %

Accuracy, typical [±FS%]

0.3 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX

Approval comments

ATEX Ex ec IIA T4 Gc

China RoHS compliance

Yes

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Flush diaphragm

No

High Clipping Level

11.5

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

International Article Number

5702423063024

Intrinsically safe

No

Low Clipping level

0

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Voltage

Output signal [V] [max]

10 V

Output signal [V] [min]

0 V

Overload pressure max. [bar]

200 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/2

Pressure connection standard

EN 837

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

100 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

1450 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

No

Quantity per packing format

14 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 33-3035-A1AB08-0

Supply current max. [mA]

8 mA

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

15 V

Supply voltage [V] DC [min]

15 V

Type

MBS 33

UK RoHS compliance

Yes
