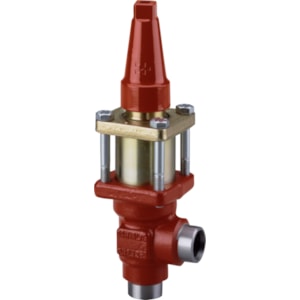

VAN DANFOSS OFV 20A (EN 10220) - C/N 2412+183

Mã sản phẩm: 2412+183

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN DANFOSSS OFV 20A (EN 10220) - C/N 2412+183

Product details

Approval	EAC; LLC CDC TYSK
China RoHS compliance	Out of scope
Colour Paint	Gray
Connection size [in]	3/4 in
Connection size [mm]	20 mm
Connection standard	EN 10220
Connection type	Butt weld
Cv value [gal/min] [max]	0.6 gal/min
Cv value [gal/min] [min]	0 gal/min
Direction	Angleway
Equipment	Cap
Fluid Group	1
In scope of WEEE and contain batteries	No
Inlet connection size [mm]	20 mm
Kv value [m³/h] [max]	0.52 m³/h
Kv value [m³/h] [min]	0 m³/h
Max. Working Pressure [bar]	40 bar
Max. Working Pressure [psig]	580 psig
Packing format	Single pack
PED category	Art. 3, par. 3
Pressure range [bar] Pe [max]	8 bar
Pressure range [bar] Pe [min]	2 bar
Pressure range [psig] Pe [max]	116 psig
Pressure range [psig] Pe [min]	2 psig
Product accessories	No
Product description	Overflow Valve
Product group	Press. and temp. regul. valves
Product Name Description	Pressure regulating valve
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a; R22; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R409A; R410A; R421A; R502; R507A; R717; R744
Serviceable	Press. regul. valve spare part
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	-58 °F
Type	OFV 20
UK RoHS compliance	Out of scope
