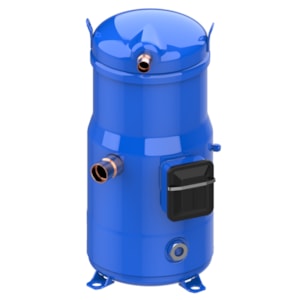

MÁY NÉN DANFOSS SM147A4ALB - C/N 120H0311

Gross weight

71.75 Kilogram

Net weight

67 Kilogram

Volume

0.098 Cubic meter

EAN

5702424543228

Approval

CE; UL; UKCA

Brand technique

Scroll compressor

Capacity control

Fixed speed

CE evaluated

Yes

China RoHS compliance

Out of scope

Colour

Blue

Compressor power supply [V]

380-415/3/50 460/3/60

Configuration code

Single

Connection type

Brazed

Description

SM147-4

Diameter [mm]

243 mm

Discharge connection height [mm]

509 mm

Discharge connection pipe size [in]

7/8 in

Discharge connection size [in]

7/8 in

Drawing number

8560003

Economizer

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a), 6(a)-I, 7(a), 7(c)-I, 8(b), 9(b)

Family

SM

Fitting standard

ODF

Frequency [Hz]

50/60

Gauge port HP

None

Gauge port LP

Schrader

Glass mounting

Threaded

Glass torque [Nm]

50 N-m

High Side TS Max

150 °C

High Side TS Min

-35 °C

High Side Volume

0.7 L

High value of nominal voltage at 50Hz [V]

400 V

High value of nominal voltage at 60Hz [V]

460 V

High value of voltage range at 50Hz [V]

440 V

High value of voltage range at 60Hz [V]

506 V

In scope of WEEE and contain batteries

No

IP protection class

IP54 (with cable gland)

Low Side TS Max

63 °C

Low Side TS Min

-35 °C

Low Side Volume

13.6 L

Low value of nominal voltage at 50Hz [V]

380 V

Low value of nominal voltage at 60Hz [V]

460 V

Low value of voltage range at 50Hz [V]

342 V

Low value of voltage range at 60Hz [V]

414 V

LRA

147 A

Max pressure (PS) - high side

27.8 bar

Max pressure (PS) - low side

25 bar

Maximum Operating Current [MOC]

26 A

MCC

29 A

Model number

SM147A4ALB

Motor protection

Internal overload protector

Mounting torque [Nm]

15 N-m

Network power supply [V/Ph/Hz]

380-415/3/50 460/3/60

Number of starts per hour [Max]

12

Oil charge [L]

3.3 L

Oil equalization

1-3/4'' Rotolock

Oil reference

160P

Oil type

Mineral

Packaging height [mm]

745 mm

Packaging length [mm]

1150 mm

Packaging weight [Kg]

566 kg

Packaging width [mm]

950 mm

Packing format

Industrial pack

Packing quantity

8

Phase

3

Power connections

Screw 4.8 mm

Product group

Hermetic compressors

Product Name Description

Scroll compressor SM

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerant charge [kg] [Max]

7.9 kg

Refrigerants

R22

RLA

20.7 A

Rotational speed at 50Hz [rpm]

2900 rpm

Rotational speed at 60Hz [rpm]

3500 rpm

SCIP dossier no.

183fc4bd-93a5-4689-b1c2-f94b1097f78c

Segment usage

Air conditioning

Shipped instructions

Installation instructions

Shipped mounting

Mounting kit with grommets, bolts, nuts, sleeves and washers

Shipped oil

Initial oil charge

Suction connection height [mm]

278 mm

Suction connection material

-

Suction connection pipe size [in]

1 3/8 in

Suction connection size [in]

1 3/8 in

Swept volume [cm3]

193.5 cm³

Technology

Scroll

Test dif [bar] [Max]

24 bar

Test HP [bar] [Max]

32 bar

Test LP [bar] [Max]

25 bar

Torque earth [Nm]

2 N-m

Torque power [Nm]

3 N-m

Total height [mm]

540 mm

Type

SM147

UK RoHS compliance

Out of scope

UL evaluated

Yes

Viscosity [cP]

32 cP

Winding resistance for three-phase compressors with identical windings [Ohm]

0.92 Ohm
