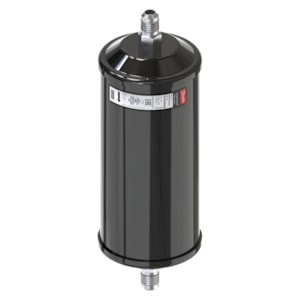

PHIN LỌC DANFOSS DML-303 (10mm) - C/N 023Z0049

Gross weight

1.388 Kilogram

Net weight

1.284 Kilogram

Volume

1.994 Liter

EAN

5702428159838

Acid capacity [g]

2.43 g

Acid capacity [oz]

0.086 oz

Activated alum/Molec sieve [%]

0% / 100%

Activated alumina [%]

0 %

Approval

UL

Body material

Steel

Braket

No

Brand

ELIMINATOR

China RoHS compliance

Out of scope

Connection material

Steel

Core

Solid core

Core Size code

30 cu.in.

Core type

Solid core

Drying Cap[Drops of Water]24°C

R134a: 1127; R290: --; R32: 948; R404A: 1174; R407C: 1094; R410A: 1020; R507: 1229

Drying Cap[Drops of Water]52°C

R134a: 1032; R290: --; R32: 873; R404A: 1112; R407C: 1009; R410A: 907 ; R507: 1106

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a)

Filter application

High Moisture Capacity

Flow capacity [kW]

R134a: 19.3; R290: --; R32: 29.5; R404A: 13.6; R407C: 19.8; R410A: 20.1; R507: 13.2

Flow capacity [TR]

R134a: 5.5; R290: --; R32: 8.4; R404A: 3.9; R407C: 5.6; R410A: 5.7; R507: 3.8

Flow direction indicator

Label printed 1-way arrow

Fluid Group

2

In scope of WEEE and contain batteries

No

Inlet 1 connection size [in]

3/8 in

Inlet connection size [mm]

10 mm

Inlet connection type

Flare

LiqCap Cond (ARI 710-2009)[SI]

Delta p=0.07bar; tliq= 30°C; tvap=-15°C

LiqCapCond (ARI 710-2009)[IMP]

Delta p=1psi; tliq= 86°F; tvap=5°F

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

46 bar

Max. Working Pressure [psig]

667 psig

Molecular sieve [%]

100 %

Net volume [foz US]

15.68 Fluid Ounce US

Net volume [l]

0.464 L

Oil free refrigerants

R1234ze(E); R134a; R513A; R515A

Outlet 1 connection size [in]

3/8 in

Outlet connection size [mm]

10 mm

Outlet connection type

Flare

Packing format

Multi pack

PED category

Art. 4, par. 3

Product accessories

Generic accessories

Product description

Liquid line filter drier

Product group

Filter driers

Product Name Description

Hermetic filter drier

Quantity per packing format

8 pc

REACH Candidate List substances

No

Refrigerants

R1233zd(E); R1234yf; R1234ze(E); R125; R134a; R22/R407C; R23; R32; R404A; R407A; R407F; R407H; R410A; R422B; R422D; R438A; R444B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R513A; R515B; R516A

Serviceable

No

Shell volume [foz US]

24.42 Fluid Ounce US

Shell volume [l]

0.72 L

Solid core surface [cm2]

340 cm²

Solid core surface [in2]

52.7 in²

Solid core volume [cm3]

258 cm³

Solid core volume [in3]

15.77 in³

Temperature range [°C] [max]

70 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

160 °F

Temperature range [°F] [min]

-40 °F

Type

DML

Type designation

DML 303

UK RoHS compliance

Out of scope

UL approval file name

SA6398

UL approved refrigerants

R125; R134a; R22; R23; R404A; R407A; R407C; R407F; R410A; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R507A; R513A

UL evaluated

Yes
