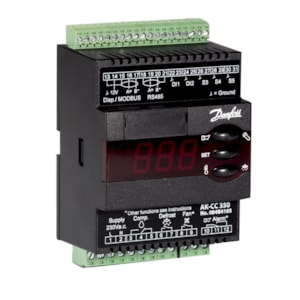

BỘ ĐIỀU KHIỂN THIẾT BỊ LÀM LẠNH DANFOSS (TXV), AK-CC 350 - C/N 084B4165

Gross weight

0.384 Kilogram

Net weight

0.317 Kilogram

Volume

1.083 Liter

EAN

5702428406994

Analog inputs (AI) [pc]

3 pc

Application area

Temperature control

Approval

C-TICK; CE; EAC; CMIM

CE evaluated

Yes

China RoHS compliance

Out of scope

Communication type

MODBUS; Optional LON; Optional MODBUS

Controller type

Refrig. Controller (Temp)

Digital inputs (DI) [pc]

2 pc

Digital outputs (DO) [pc]

4 pc

Display - option

EKA 163A; EKA 164A

Display on front

Yes

EU RoHS compliance

Out of scope

Frequency [Hz]

50/60 Hz

Function

Temp, Multi appli. 4 relays

Further information

Alarm=More func. Fan 2nd Comp

Number of Compressors max.

2 pc

Number of Evaporators max.

1 pc

Number of Sensor inputs

3 pc

Other RoHS documentation

EAEU RoHS

Packing format

Multi pack

Power consumption [VA]

2.3 VA

Product accessories

Electron. control accessories

Product group

Evaporator and room control

Product Name Description

Refrig appliance control (TXV)

Quantity per packing format

20 pc

REACH Candidate List substances

No

Sensor type

Temp.Sensors

Serviceable

No

Supply voltage [V] AC

230 V

Temp. sensor support

NTC-M2020; PTC 1000; Pt 1000

Type

AK-CC 350

UK RoHS compliance

Out of scope

Valve output type

EVR (TXV)
