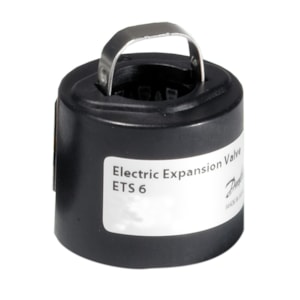

CUỘN VAN TIẾT LƯU ĐIỆN DANFOSS ETS 6 - C/N 034G5150

Gross weight

0.25 Kilogram

Net weight

0.11 Kilogram

Volume

1.471 Liter

EAN

5702428825436

Approval

CQC; EAC; LLC CDC TYSK; RoHS; UL

Cable length [in]

118 in

Cable length [m]

3 m

China RoHS compliance

Yes

Class of Insulation

E

Coil resistance [Ohm]

46

Compatible Danfoss controllers

EIM 336; EKD 316; EKD 316C; EKE 1A; EKE 1B; EKE 1C; EXD 316

Current range [A]

0.26 A

Electrical connector

JST XHP-6

Enclosure rating IP

IP66

EU RoHS compliance

Yes

EU RoHS exemption clause

No

In scope of WEEE and contain batteries

No

Packing format

Industrial pack

Parts Program name

ETS 6

Power consumption [W]

3 W

Product accessories

Electric valve accessories

Product group

Expansion valves

Product Name Description

Elec. expansion valve coil

Protection tube length [mm]

2800 mm

Quantity per packing format

40 pc

REACH Candidate List substances

Trixylyl phosphate (CAS no. 25155-23-1)
Bisphenol A (BPA, CAS no. 80-05-7)

SCIP dossier no.

f5d8f281-1004-4fb6-9f5a-6febaff329a2

SCIP dossier product name

Electric control valve coil(8)

Serviceable

No

Supply voltage [V] DC

12 V

Type

ETS 6

UK RoHS compliance

Yes

UL Class

UL CLASS 105 (A)

UL evaluated

Yes

Used for product

ETS 6
