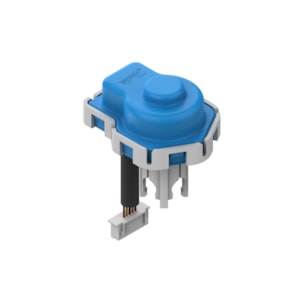

VAN TIẾT LƯU ĐIỆN DANFOSS ETS 5M - C/N 034G3805

Gross weight

0.096 Kilogram

Net weight

0.081 Kilogram

Volume

0.617 Liter

EAN

5702428680585

Cable length [in]

27.55 in

Cable length [m]

0.7 m

China RoHS compliance

Yes

Class of Insulation

B

Coil resistance [Ohm]

50

Compatible Danfoss controllers

EIM 336

Current range [A]

0.24 A

Electrical connector

JST XHP-5

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE and contain batteries

No

Motor type

Uni-polar

Packing format

Industrial pack

Parts Program name

ETS 5M

Power consumption [W]

4.1 W

Product accessories

Electric valve accessories

Product group

Expansion valves

Product Name Description

Elec. expansion valve coil

Quantity per packing format

40 pc

REACH Candidate List substances

No

Serviceable

No

Supply voltage [V] DC

12 V

Supply voltage [V] DC

12 V

Type

ETS 5M

UK RoHS compliance

Out of scope

Used for product

ETS 5M
