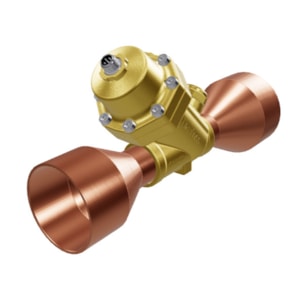

VAN TIẾT LƯU ĐIỆN DANFOSS ETS 500L - C/N 034G3666

Gross weight

5.018 Kilogram

Net weight

3.95 Kilogram

Volume

21.56 Liter

EAN

5715162508695

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CE; CMIM; CRN; EAC; LLC CDC TYSK; UA; UKCA; UL Recognized

Approval file name

MH7648

Balanced port [Yes/No]

Yes

Body material

Brass

CE evaluated

Yes

China RoHS compliance

Out of scope

Compatible Danfoss controllers

AK-XM 208C; EKE; EKF; MXC

Connection material

Copper

Cv value [gal/min]

31.33 gal/min

Direction

Straightway

Electrical conn. Male/Female

Male

Electrical connection

M12

Electrical connection size

4 pin

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow characteristic

Linear

Flow direction

Bi-flow

Fluid Group

2

Full travel time CurrDrive [s]

16.7 s

Full travel time VoltDrive [s]

33.3 s

In scope of WEEE and contain batteries

No

Inlet connection type

Solder, ODF

Inlet size [in]

3 1/8 in

Kv value [m³/h]

27.1 m³/h

Lubricants compatibility

POE

Manual operation option

AST-G service driver

Max allowed duty cycle [%]

50 %

Max tot PowerCons CurrDrive[W]

4.2 W

Max tot PowerCons VoltDrive[W]

5.5 W

Max. Working Pressure [bar]

37 bar

Max. Working Pressure [psig]

536 psig

MaxOPD reverse [bar]

10 bar

MaxOPD reverse [psi]

145 psi

MaxOPD reverse CurrDrive [bar]

10 bar

MaxOPD reverse CurrDrive [psi]

145 psi

MaxOPD reverse VoltDrive [bar]

10 bar

MaxOPD reverse VoltDrive [psi]

145 psi

Motor type

Bi-polar

MWP [bar] CRN

32 bar

MWP [psig] CRN

463 psig

Operating current max. [A]

0.4 A

Outlet connection type

Solder, ODF

Outlet size [in]

3 1/8 in

Packing format

Single pack

PED category

I

Phase current (peak) [mA]

283 mA

Phase current (RMS) [mA]

200 mA

Phase inductance [µH]

85000 μH

Product group

Expansion valves

Product Name Description

Electric expansion valve

Quantity per packing format

1 pc

Rated cap. cond. note

Full stroke open, normal flow

Rated cap. conditions [IMP]

tcond=90 °F; tevap=40 °F; tliq=82 °F

Rated cap. conditions [SI]

tcond=32 °C; tevap=5 °C; tliq=28 °C

Rated capacity R1234ze [kW]

1396 kW

Rated capacity R1234ze [TR]

402 TR

Rated capacity R134a [kW]

1786 kW

Rated capacity R134a [TR]

507 TR

Rated capacity R513A [kW]

1535 kW

Rated capacity R513A [TR]

442 TR

Rated capacity R515B [kW]

1357 kW

Rated capacity R515B [TR]

390 TR

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Cobalt dichloride (CAS no. 7646-79-9)

Refrigerant temperature [ºC] [max]

95 °C

Refrigerant temperature [ºC] [min]

-40 °C

Refrigerant temperature [ºF] [max]

203 °F

Refrigerant temperature [ºF] [min]

-40 °F

Refrigerants

R1234ze(E); R134a; R22; R404A; R407A; R407C; R407F; R407H; R410A; R417A; R422A; R422B; R422D; R438A; R442A; R448A; R449A; R449B; R450A; R452A; R463A; R507A; R513A; R513B; R515A; R515B

SCIP dossier no.

c81a3c50-9710-4373-be75-2652b16aea76

SCIP dossier product name

ETS 175L-550L with sight glass

Sightglass

Yes

Step mode

2-phase full step

Type

ETS 500L

UK RoHS compliance

Yes with exemptions

UK RoHS exemption clause

18

UL approved refrigerants

R1234ze(E); R134a; R22; R404A; R407A; R407C; R407F; R407H; R410A; R417A; R422A; R422B; R422D; R438A; R442A; R448A; R449A; R449B; R450A; R452A; R463A; R507A; R513A; R513B; R515A; R515B

UL evaluated

Yes

Voltage [V] DC

12 V
