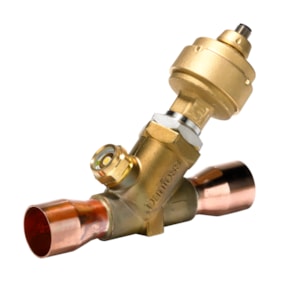

VAN TIẾT LƯU ĐIỆN DANFOSS ETS 250 - C/N 034G2611

Gross weight

2.34 Kilogram

Net weight

1.648 Kilogram

Volume

12.034 Liter

EAN

5702428844345

Ambient temperature range [°C] [max]

60 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

140 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CE; EAC; LLC CDC TYSK; UKCA; UL

Balanced port [Yes/No]

Yes

China RoHS compliance

Out of scope

Compatible Danfoss controllers

EKE 1A; EKE 1B; EKE 1C

Connection material

Copper

Direction

Straightway

Electrical conn. Male/Female

Male

Electrical connection

M12

Electrical connection size

4 pin

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Bi-flow

Fluid Group

2

Full travel time speed [s] [max]

25.4 s

Full travel time speed [s] [min]

12.7 s

In scope of WEEE and contain batteries

No

Inlet connection type

Solder ODF

Inlet size [mm]

42 mm

Lubricants compatibility

MO; POE

Manual operation option

AST-G service driver

Max allowed duty cycle [%]

100 %

Max tot PowerCons CurrDrive[W]

1.3 W

Max tot PowerCons VoltDrive[W]

5.5 W

Max. Working Pressure [bar]

34 bar

Max. Working Pressure [psig]

493 psig

MaxOPD [bar]

33 bar

MaxOPD [psi]

478.6 psi

MaxOPD reverse [bar]

10 bar

MaxOPD reverse [psi]

145 psi

Motor type

Bi-polar

Outlet connection type

Solder ODF

Outlet size [mm]

42 mm

Packing format

Single pack

PED category

I

Phase current (peak) [mA]

141 mA

Phase current (RMS) [mA]

100 mA

Phase inductance [µH]

85000 μH

Product accessories

Stepper valve accessories

Product group

Expansion valves

Product Name Description

Electric expansion valve

Quantity per packing format

1 pc

Rated cap. cond. note

Full stroke open, normal flow

Rated cap. conditions [IMP]

tcond=90 °F; tevap=40 °F; tliq=82 °F

Rated cap. conditions [SI]

tcond=32 °C; tevap=5 °C; tliq=28 °C

Rated cap. R404A/R507A [kW]

828 kW

Rated cap. R404A/R507A [TR]

239 TR

Rated capacity R134a [kW]

874 kW

Rated capacity R134a [TR]

252 TR

Rated capacity R22 [kW]

1106 kW

Rated capacity R22 [TR]

319 TR

Rated capacity R407C [kW]

1212 kW

Rated capacity R407C [TR]

349 TR

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerant temperature [ºC] [max]

65 °C

Refrigerant temperature [ºC] [min]

-40 °C

Refrigerant temperature [ºF] [max]

150 °F

Refrigerant temperature [ºF] [min]

-40 °F

Refrigerants

R1234ze(E); R134a; R22; R404A; R407A; R407C; R407F; R407H; R410A; R417A; R422A; R422B; R422D; R438A; R442A; R448A; R449A; R449B; R450A; R452A; R463A; R507A; R513A; R513B; R515A; R515B

Resistance [kOhm]

0.1 kOhm

SCIP dossier no.

b48f5443-ed03-4d88-8763-170e0af1b5c0

SCIP dossier product name

ETS 250-800/KVS 42

Serviceable

Stepper valve spare parts

Step mode

2-phase full step

Total steps

3810 (full steps)

Type

ETS 250

UK RoHS compliance

Out of scope

UL approved refrigerants

R134a; R22; R404A; R407A; R407C; R407F; R410A; R422B; R422D; R438A; R448A; R449A; R450A; R452A; R507A; R513A

Voltage [V] DC [max]

13.8 V

Voltage [V] DC [min]

11.5 V
