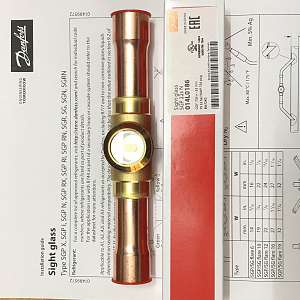

KÍNH XEM GAS DANFOSS SGP 22s N, HÀN - C/N 014L0186

Mã sản phẩm: 014L0186
Thương hiệu: Danfoss
Giá thị trường: 662.500 đ
Tiết kiệm: 132.500 đ (20%)
Giá bán: 530.000 đ
Số lượng:
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

KÍNH XEM GAS DANFOSS SGP 22s N, HÀN - C/N 014L0186

CÁC MÃ TƯƠNG TỰ



Kính xem gas Danfoss SGP 6s N, Hàn

Mã hàng:

014L0181

Kính xem gas Danfoss SGP 10s N, Hàn

Mã hàng:

014L0182

Kính xem gas Danfoss SGP 16s N, Hàn

Mã hàng:

014L0184

Kính xem gas Danfoss SGP 19s N, Hàn

Mã hàng:

014L0185

Kính xem gas Danfoss SGP 22s N, Hàn

Mã hàng:

014L0186

Kính xem gas Danfoss SGP 22s N, Hàn ( Loe 28mm)

Mã hàng:

014L0187



Product details

Gross weight

0.316 Kilogram

Net weight

0.297 Kilogram

Volume

0.274 Liter

EAN

5702428818803



Approval

C UL US LISTED; EAC

Approval file name

REF. LIQUID INDICATOR 76H4

Body material

Brass

China RoHS compliance

Yes exceed limitations

Connection material

Copper

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Green: max moist con@25 °C

R1234ze(E): 26 ppm; R1270: 16 ppm; R134a: 30 ppm; R22: 30 ppm; R32: 64 ppm; R404A: 20 ppm; R407A: 29 ppm; R407C: 30 ppm; R407F: 30 ppm; R410A: 66 ppm; R448A: 28 ppm; R449A: 29 ppm; R450A: 23 ppm; R452A: 20 ppm; R454B: 29 ppm; R507A: 15 ppm; R513A: 22 ppm

Green: max moist con@43 °C

R1234ze(E): 28 ppm; R1270: 29 ppm; R134a: 45 ppm; R22: 50 ppm; R32: 116 ppm; R404A: 25 ppm; R407A: 48 ppm; R407C: 60 ppm; R407F: 60 ppm; R410A: 135 ppm; R448A: 70 ppm; R449A: 53 ppm; R450A: 46 ppm; R452A: 30 ppm; R454B: 58 ppm; R507A: 30 ppm; R513A: 22 ppm

Identical product

014L0200

Ignition source assessment

Yes

In scope of WEEE and contain batteries

No

Inlet connection type

Solder, ODF

Inlet size [in]

7/8 in

Inlet size [mm]

22 mm

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Moisture indicator

N indicator

Oil free refrigerants

R1234ze(E); R134a; R513A; R515B

Other RoHS documentation

Saudi Arabia RoHS

Outlet connection type

Solder, ODF

Outlet size [in]

7/8 in

Outlet size [mm]

22 mm

Packing format

Multi pack

Product accessories

No

Product group

Sight glasses

Product Name Description

Sight glass

Quantity per packing format

28 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1); Cobalt dichloride (CAS no. 7646-79-9)

Refrigerants

R1233zd(E); R1234yf; R1234ze(E); R1270; R134a; R22; R32; R404A; R407A; R407C; R407F; R407H; R410A; R448A; R449A; R450A; R452A; R452B; R454B; R454C; R455A; R463A; R507A; R513A; R515B; R744

SCIP dossier no.

323c7b85-ff73-43cd-8fce-a44eabbf5297

Serviceable

No

Temperature range [°C] [max]

80 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

175 °F

Temperature range [°F] [min]

-58 °F

Type

SGP 22s N

UK RoHS compliance

Out of scope

UL approval file name

REF. LIQUID INDICATOR 76H4

UL approved refrigerants

R1233zd(E); R134a; R22; R404A; R407A; R407C; R407F; R407H; R410A; R448A; R449A; R450A; R452A; R463A; R507A; R513A; R515B; R744

Yellow: min moist con@25 °C

R1234ze(E): 132 ppm; R1270: 62 ppm; R134a: 100 ppm; R22: 120 ppm; R32: 289 ppm; R404A: 70 ppm; R407A: 115 ppm; R407C: 140 ppm; R407F: 168 ppm; R410A: 266 ppm; R448A: 110 ppm; R449A: 105 ppm; R450A: 148 ppm; R452A: 79 ppm; R454B: 161 ppm; R507A: 60 ppm; R513A: 75 ppm

Yellow: min moist con@43 °C

R1234ze(E): 165 ppm; R1270: 115 ppm; R134a: 170 ppm; R22: 200 ppm; R32: 459 ppm; R404A: 100 ppm; R407A: 192 ppm; R407C: 225 ppm; R407F: 240 ppm; R410A: 540 ppm; R448A: 227 ppm; R449A: 200 ppm; R450A: 245 ppm; R452A: 143 ppm; R454B: 250 ppm; R507A: 110 ppm; R513A: 123 ppm
