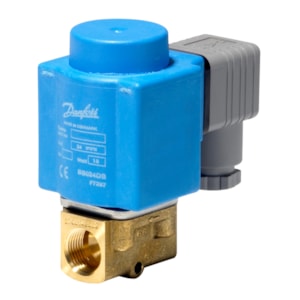

VAN ĐIỆN TỪ DANFOSS EV210B, Function: NC, G, 3/8, 1.500 m³/h, EPDM - C/N 032U367901

Gross weight

0.594 Kilogram

Net weight

0.54 Kilogram

Volume

0.879 Liter

EAN

5702423216222

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

50 °C

Ambient temperature max. [°F]

122 °F

Application

Closed and Drain

Approval

CE; DNVGL-CG-0339; GL; UKCA

Body material

Brass

China RoHS compliance

Out of scope

Coil option

Clip-on

Coil type

BB

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

3/8

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

1.75 gal/min

Differential pressure [bar] [max]

0.6 bar

Differential pressure [bar] [min]

0 bar

Differential pressure [psi] [max]

9 psi

Differential pressure [psi] [min]

0 psi

EEE category

5 small equipment (any external dimension 50 cm)​

Electrical connection

Spade DIN 43650-A

Enclosure rating IP

IP00

Est. time to close, water [ms]

30 ms

Est. time to open, water [ms]

20 ms

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Function

NC

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Kv value [m³/h]

1.5 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

16 bar

Max. test pressure [psig]

232 psig

Max. Working Pressure [bar]

0.6 bar

Max. Working Pressure [psig]

9 psig

Media recommendations

Water & Brine

Media tolerance comments

Neutral media

Medium temperature range [°C] [max]

120 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

248 °F

Medium temperature range [°F] [min]

-22 °F

Number of ways

2/2

Operation

Direct-operated

Orifice size [mm]

10 mm

Orifice size fraction [in]

3/8 in

Packing format

Multi pack

Parts Program name

EV210B

Power consumption [W] DC

14 W

Product accessories

Solenoid coil accessories; Solenoid valve accessories

Product group

Solenoid valves

Product Name Description

Solenoid valve

Quantity per packing format

24 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Seal Material

EPDM

Serviceable

Solenoid valve spare parts

Specification key

EV210B 10B G 38E NC000 BB012DS

Supply voltage [V] DC

12 V

Supply voltage [V] DC

12 V

Type

EV210B

Type designation

EV210B 10

UK RoHS compliance

Out of scope
