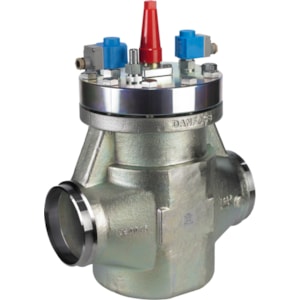

VAN ĐIỆN TỪ DANFOSS ICLX-125 - C/N 027H7158

Gross weight

88.8 Kilogram

Net weight

79.33 Kilogram

Volume

199.883 Liter

EAN

5702428483094

Actuator system

2 EVM pilot sol valve module

Approval

EAC ; LLC CDC TYSK ; TÜV ; UL

Body material

Steel

Brand

ICV Flexline

China RoHS compliance

Out of scope

Comments

COILS NOT INCLUDED

Connection material

Steel

Connection standard

ASME B 36.10M SCHEDULE 40

Cv value [gal/min]

261 gal/min

Description

2-step solenoid valve

Direction

Straightway

EU RoHS compliance

Out of scope

Ext pilot pressure connection

Weld nipple (P2 Port)

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

In scope of WEEE and contain batteries

No

Inlet connection size [in]

5 in

Inlet connection size [mm]

125 mm

Inlet connection type

Butt weld

Kv value [m³/h]

225 m³/h

Manual operation option

Manual open spindle

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Opening configuration

1-step (optional setting); 2-step (default)

Outlet connection size [in]

5 in

Outlet connection size [mm]

125 mm

Outlet connection type

Butt weld

Packing format

Single pack

Parts Program name

ICLX

PED category

III

Product accessories

ICM / ICS / ICLX accessories

Product description

Solenoid valve

Product group

Solenoid valves

Product Name Description

2-step solenoid valve

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R134a; R22; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R409A; R410A; R421A; R502; R717; R744; R507A; R1234yf; R1234ze(E); R125; R152a; R227ea; R236fa; R245fa; R290; R32; R407H; R413A; R417A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R512A; R513A; R513B; R515A; R515B; R516A; R170; R452C; R600; R600a

Serviceable

ICM / ICS / ICLX spare parts

Step 1 opening degree (~) [%]

10 %

Step 2 initialization

Delta p 1.25 bar (18 psig)

Surface coating

Zn (TLP)

Temperature range [°C] [max]

120 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

248 °F

Temperature range [°F] [min]

-76 °F

Type

ICLX 125

UK RoHS compliance

Out of scope

UL approval file name

REFRIGERANT VALVE 53R0

Valve operation

Solenoid operated

Valve version

Standard version
