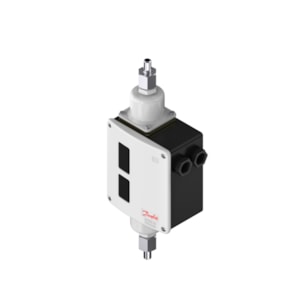

CÔNG TẮC ÁP SUẤT DANFOSS RT266AL - C/N 017D008166

Gross weight

1.4 Kilogram

Net weight

1.149 Kilogram

Volume

4.54 Liter

EAN

5702428042680

Ambient temperature range [°C] [max]

65 °C

Ambient temperature range [°C] [min]

-20 °C

Ambient temperature range [°F] [max]

149 °F

Ambient temperature range [°F] [min]

-4 °F

Approval

CCC; CE; EAC; LLC CDC EURO-TYSK; LVD; PZH; RMRS; RoHS; RoHS China; TYSK; UKCA

China RoHS compliance

Yes

Contact differential [bar]

0.05 bar

Contact function

SPDT (neutral zone)

Contact rating

AC15=3 A, 400 V; AC1=10 A, 400 V; AC3=4 A, 400 V; DC13=12 W, 220 V; LR=28 A, 400 V

Diff.press.setting range [bar] [max]

0.9 bar

Diff.press.setting range [bar] [min]

0 bar

Diff.press.setting range [MPa] [max]

0.09 MPa

Diff.press.setting range [MPa] [min]

0 MPa

Diff.press.setting range [psi] [max]

13.1 psi

Diff.press.setting range [psi] [min]

0 psi

EEE category

5 small equipment (any external dimension 50 cm)​

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

2xPg 13.5

Electrical connection standard

DIN 40430

Electrical spec. standard

EN 60947-4/-5

EN 60947 electrical properties

Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 10A

EN 60947 wiring properties

Flex, ferrules: 0.2-1.5 mm2; Flex, no ferrules: 0.2-2.5 mm2; Solid/stranded: 0.2-2.5 mm2

Enclosure rating IP

IP66

EU RoHS compliance

Yes

EU RoHS exemption clause

No

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Max. neutral zone [bar]

0.23 bar

Max. test pressure [bar] Pe

8 bar

Max. test pressure [psig]

116 psig

Max. Working Pressure [bar]

7 bar

Max. Working Pressure [psig]

101 psig

Operat. range LP side [bar] Pe [max]

6 bar

Operat. range LP side [bar] Pe [min]

-1 bar

Operat. range LP side [psig]Pe [max]

87 psig

Operat. range LP side [psig]Pe [min]

-15 psig

Packing format

Multi pack

Pressure connection notes

Weld nipple d6.5/D10mm

Pressure connection size

3/8

Pressure connection standard

ISO 228-1

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] Pe [max]

6 bar

Pressure range [bar] Pe [min]

-1 bar

Product accessories

Generic accessories; Switches accessories

Product description

Diff. Pressure Switch

Product group

Switches and thermostats

Product Name Description

Differential pressure switch

Quantity per packing format

9 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Relay release time [s]

0 s

Reset function

Auto

SCIP dossier no.

54f3e4b2-77e8-4825-a1c1-c3d5ba584171

Serviceable

Contact systems

Type

RT266AL

UK RoHS compliance

Yes
