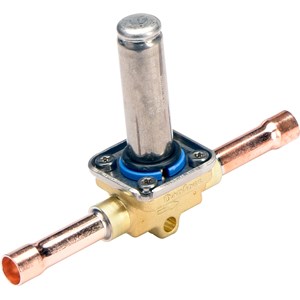

VAN ĐIỆN TỪ DANFOSS EVR 3, Solder, ODF - C/N 032G1005

Gross weight

0.218 Kilogram

Net weight

0.161 Kilogram

Volume

0.883 Liter

EAN

5702428064422

Actuator system [mm]

13.5 mm

Ambient temperature

-40 - Coil dependend

Approval

EAC; LLC CDC TYSK

Body material

Brass

China RoHS compliance

Yes exceed limitations

Coil

No

Cv value [gal/min]

0.31 gal/min

Direction

Straightway

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a), 6(c)

Function

NC

In scope of WEEE and contain batteries

No

Inlet connection type

Solder, ODF

Inlet size [mm]

6 mm

Kv value [m³/h]

0.27 m³/h

Lubricants compatibility

AB; MO; PAG; PAO; POE; PVE

Manual operation option

No

Matr grp for sales restriction

Flammable agreement B (RC,CC)

Max. Working Pressure [bar]

35 bar

Max. Working Pressure [psig]

500 psig

MaxOPD[bar] 10W AC

38 bar

MaxOPD[psi] 10W AC

550 psi

Medium temp. range note

Defrost max 130°C/265°F

Medium temperature range [°C] [max]

105 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

221 °F

Medium temperature range [°F] [min]

-40 °F

MinODP [bar]

0 bar

MOPD[bar/psi]

Coil Dependend

Orifice size [mm]

3.3 mm

Outlet connection type

Solder, ODF

Outlet size [mm]

6 mm

Packing format

Multi pack

Parts Program name

EVR

Product accessories

Solenoid valve accessories

Product group

Solenoid valves

Product Name Description

Solenoid valve

Quantity per packing format

24 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R1234yf; R1234ze(E); R125; R134a; R152a
R22; R290; R32; R404A; R407A;R407C; R407F; R407H; R410A; R413A; R417A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R512A; R513A; R513B; R515A; R515B; R516A; R600; R600a

SCIP dossier no.

7d4d3ef3-e2d2-40aa-a84a-0a3286c91c98

SCIP dossier product name

EVR 2-8/EVO 100-102 (NC)

Serviceable

Solenoid valve spare parts

Type

EVR 3

Type designation

Solenoid valve, Solder

UK RoHS compliance

Out of scope

Valve operation

Direct
