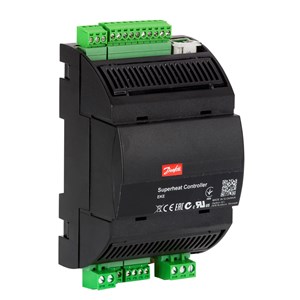

THIẾT BỊ ĐIỀU KHIỂN NHIỆT ĐỘ DANFOSS EKE 1B - C/N 080G5350
Digital inputs (DI) [pc]: 2, Analog inputs (AI) [pc]: 2, Pressure sensor support: Ratiometric 0.5 - 4 V DC, Frequency [Hz]: 50/60 Hz, Number of temperature sensors: 2, Number of pressure sensors: 1, Communication type: RJ11 (CAN) to User Interface; Modbus RS485 RTU
Product details
|
Gross weight |
0.256 Kilogram |
|
Net weight |
0.134 Kilogram |
|
Volume |
1.829 Liter |
|
EAN |
5702428964326 |
|
Analog inputs (AI) [pc] |
2 pc |
|
Analog inputs type |
Voltage |
|
Approval |
C-TICK; CE; EAC; LLC CDC EURO-TYSK; RoHS; UKCA |
|
Battery back-up [V] DC [max] |
24 V |
|
Battery back-up [V] DC [min] |
18 V |
|
China RoHS compliance |
Out of scope |
|
Communication type |
Modbus RS485 RTU; RJ11 (CAN) to User Interface |
|
Digital inputs (DI) [pc] |
2 pc |
|
Digital outputs (DO) [pc] |
1 pc |
|
Display - option |
MMIGRS2 |
|
Display on front |
No |
|
EEE category |
5 small equipment (any external dimension 50 cm) |
|
Enclosure rating note |
IP40 for Housing |
|
EU RoHS compliance |
Out of scope |
|
Frequency [Hz] |
50/60 Hz |
|
Further information |
Shared power supply |
|
Gateway option |
MMIMYK |
|
In scope of WEEE |
Yes |
|
In scope of WEEE and contain batteries |
No |
|
Mounting method |
DIN rail |
|
Number of pressure sensors |
1 |
|
Number of temperature sensors |
2 |
|
Other RoHS documentation |
EAEU RoHS |
|
Packing format |
Multi pack |
|
Pressure sensor support |
Ratiometric 0.5 - 4 V DC |
|
Product accessories |
Electron. control accessories |
|
Product features |
Alarm management; Capacity signal from master; Defrost Sequence; Ext reference, temp/SH control; Limitation functions; Manual operation; Preset OD; Reversible system with 1 EXV; Service mode; Start up; Superheat reference; Valve driver: Reference of OD |
|
Product group |
Electronic valve control |
|
Product Language |
Chinese; English; French; German; Italian; Portuguese; Russian; Spanish |
|
Product Name Description |
Superheat controller |
|
Programming tools |
Koolprog |
|
Quantity per packing format |
16 pc |
|
REACH Candidate List substances |
No |
|
Serviceable |
No |
|
Supply voltage [V] AC |
24 V |
|
Supply voltage [V] DC |
24 V |
|
Supply voltage [V] DC |
24 V |
|
Temp. sensor configuration |
S2 and S3 or S4 |
|
Temp. sensor support |
NTC10000 |
|
Type |
EKE 1B |
|
UK RoHS compliance |
Out of scope |
|
Valve output type |
CCM 10 ; CCM 20 ; CCM 30 ; CCM 40 ; CCMT 0 ; CCMT 1 ; CCMT 16 ; CCMT 2 ; CCMT 24 ; CCMT 30 ; CCMT 4 ; CCMT 42 ; CCMT 8 ; CTR 20 ; ETS 100 ; ETS 100C ; ETS 12.5 ; ETS 12C ; ETS 24C ; ETS 25 ; ETS 250 ; ETS 25B ; ETS 25C ; ETS 400 ; ETS 50 ; ETS 50C ; ETS 5M ; ETS 6 ; KVS 15 ; KVS 2C ; KVS 3C ; KVS 42 ; KVS 5C |
