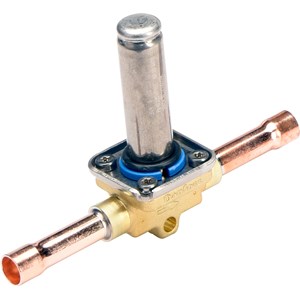

VAN ĐIỆN TỪ DANFOSS EVR 3, Solder, ODF, 1/4 in - C/N 032F1156

Gross weight

0.216 Kilogram

Net weight

0.159 Kilogram

Volume

0.85 Liter

EAN

5702422041023

Actuator system [mm]

13.5 mm

Ambient temperature

-40 - Coil dependend

Approval

C UL US LISTED; EAC; LLC CDC TYSK

Body material

Brass

China RoHS compliance

Yes exceed limitations

Coil

No

Cv value [gal/min]

0.31 gal/min

Direction

Straightway

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a), 6(c)

Function

NC

In scope of WEEE and contain batteries

No

Inlet connection type

Solder, ODF

Inlet size [in]

1/4 in

Kv value [m³/h]

0.27 m³/h

Lubricants compatibility

AB; MO; PAG; PAO; POE; PVE

Manual operation option

No

Max. Working Pressure [bar]

45.2 bar

Max. Working Pressure [psig]

655 psig

MaxOPD[bar] 10W AC

38 bar

MaxOPD[psi] 10W AC

550 psi

Medium temp. range note

Defrost max 130°C/265°F

Medium temperature range [°C] [max]

105 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

221 °F

Medium temperature range [°F] [min]

-40 °F

MinODP [bar]

0 bar

MWP [bar] PED compliant

49 bar

Orifice size [mm]

3.3 mm

Outlet connection type

Solder, ODF

Outlet size [in]

1/4 in

Packing format

Multi pack

Parts Program name

EVR

Product accessories

Solenoid valve accessories

Product group

Solenoid valves

Product Name Description

Solenoid valve

Quantity per packing format

24 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R1234yf; R1234ze(E); R125; R134a; R152a; R22; R290; R32; R404A; R407A; R407C; R407F; R407H; R410A; R413A; R417A; R422A; R422B; R422D; R438A; R442A; R444B;R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R512A; R513A; R513B; R515A; R515B; R516A; R600; R600a

SCIP dossier no.

29cb9379-b48f-46b9-9360-0837e10ce0bf

SCIP dossier product name

EVR 10-22/EVO 103/EVRC/EVRH 10-20 (NC)

Serviceable

Solenoid valve spare parts

Type

EVR 3

Type designation

Solenoid valve, Solder

UK RoHS compliance

Out of scope

UL approved refrigerants

R125; R134a; R152a; R22; R290; R404A; R407A; R407C; R407F; R407H; R410A; R413A; R417A; R422A; R422B; R422D; R438A; R442A; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R455A; R463A; R507A; R512A; R513A; R513B; R515A; R515B; R516A; R600; R600a

Valve operation

Direct
