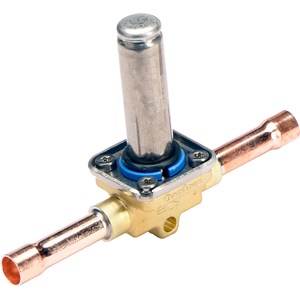

VAN ĐIỆN TỪ DANFOSS EVR 3, Solder, ODF, 1/4 in - C/N 032F204231

Gross weight

0.522 Kilogram

Net weight

0.471 Kilogram

Volume

0.884 Liter

EAN

5702422015031

Actuator system [mm]

13.5 mm

Ambient temperature

-40 - 80 °C

Ambient temperature range [°F] [max]

175 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

EAC; LLC CDC TYSK

Body material

Brass

Cable length [in]

40 in

Cable length [m]

1 m

China RoHS compliance

Yes exceed limitations

Coil

Yes

Coil connection

Cable

Coil type

BF230AS

Cv value [gal/min]

0.31 gal/min

Direction

Straightway

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a), 6(c)

Fluid Group

1; 2

Frequency [Hz]

50 Hz

Function

NC

In scope of WEEE and contain batteries

No

Inlet connection type

Solder, ODF

Inlet size [in]

1/4 in

Kv value [m³/h]

0.27 m³/h

Lubricants compatibility

AB; MO; PAG; PAO; POE; PVE

Manual operation option

No

Max. Working Pressure [bar]

45.2 bar

Max. Working Pressure [psig]

655 psig

MaxOPD[bar] 10W AC

38 bar

MaxOPD[psi] 10W AC

550 psi

Medium temp. range note

Defrost max 130°C/265°F

Medium temperature range [°C] [max]

105 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

221 °F

Medium temperature range [°F] [min]

-40 °F

MinODP [bar]

0 bar

MOPD[bar/psi]

21 bar

Orifice size [mm]

3.3 mm

Outlet connection type

Solder, ODF

Outlet size [in]

1/4 in

Packing format

Multi pack

Parts Program name

EVR

PED category

Art. 4, par. 3

Power consumption

10 W

Power consumption [W] 50Hz

12 W

Product accessories

Solenoid valve accessories

Product group

Solenoid valves

Product Name Description

Solenoid valve

Quantity per packing format

24 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R1234yf; R1234ze(E); R125; R134a; R152a; R22; R290; R32; R404A; R407A; R407C; R407F; R407H; R410A; R413A; R417A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R512A; R513A; R513B; R515A; R515B; R516A; R600; R600a

SCIP dossier no.

7d4d3ef3-e2d2-40aa-a84a-0a3286c91c98

SCIP dossier product name

EVR 2-8/EVO 100-102 (NC)

Serviceable

Solenoid valve spare parts

Supply voltage 50Hz Max [V]

230 V

Supply voltage 50Hz Min [V]

220 V

Supply voltage [V] AC [max]

230 V

Supply voltage [V] AC [min]

220 V

Type

EVR 3

Type designation

Solenoid valve, Solder

UK RoHS compliance

Out of scope

UL approved refrigerants

R290; R600; R600a

Valve operation

Direct
