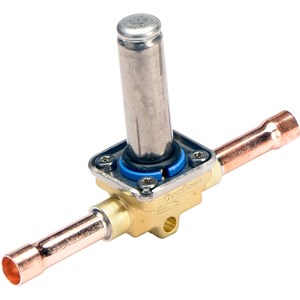

VAN ĐIỆN TỪ DANFOSS EVR 3 Solder, ODF, 3/8 in - C/N 032F1157

Gross weight

0.241 Kilogram

Net weight

0.176 Kilogram

Volume

0.87 Liter

EAN

5702422002864

Actuator system [mm]

13.5 mm

Ambient temperature

-40 - Coil dependend

Approval

C UL US LISTED; EAC; LLC CDC TYSK

Body material

Brass

China RoHS compliance

Yes exceed limitations

Coil

No

Cv value [gal/min]

0.31 gal/min

Direction

Straightway

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a), 6(c)

Fluid Group

1; 2

Function

NC

In scope of WEEE and contain batteries

No

Inlet connection type

Solder, ODF

Inlet size [in]

3/8 in

Kv value [m³/h]

0.27 m³/h

Lubricants compatibility

AB; MO; PAG; PAO; POE; PVE

Manual operation option

No

Max. Working Pressure [bar]

45.2 bar

Max. Working Pressure [psig]

655 psig

MaxOPD[psi] 14W AC

350 psi

Medium temp. range note

Defrost max 130°C/265°F

Medium temperature range [°C] [max]

105 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

221 °F

Medium temperature range [°F] [min]

-40 °F

MinODP [bar]

0 bar

Orifice size [mm]

3.3 mm

Outlet connection type

Solder, ODF

Outlet size [in]

3/8 in

Packing format

Multi pack

Parts Program name

EVR

PED category

Art. 4, par. 3

Product accessories

Solenoid valve accessories

Product group

Solenoid valves

Product Name Description

Solenoid valve

Quantity per packing format

24 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R1234yf; R1234ze(E); R125; R134a; R152a; R22; R290; R32; R404A; R407A; R407C; R407F; R407H
R410A; R413A; R417A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R512A; R513A; R513B; R515A; R515B; R516A; R600; R600a

SCIP dossier no.

29cb9379-b48f-46b9-9360-0837e10ce0bf

SCIP dossier product name

EVR 10-22/EVO 103/EVRC/EVRH 10-20 (NC)

Serviceable

Solenoid valve spare parts

Type

EVR 3

Type designation

Solenoid valve, Solder

UK RoHS compliance

Out of scope

UL approved refrigerants

R125; R134a; R152a; R22; R290; R404A; R407A; R407C; R407F; R407H; R410A; R413A; R417A; R422A; R422B; R422D; R438A; R442A; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R455A; R463A; R507A; R512A; R513A; R513B; R515A; R515B; R516A; R600; R600a

Valve operation

Direct
