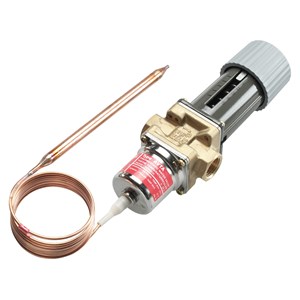

VAN DANFOSS AVTA 20, G, 3/4 - C/N 003N0043

Gross weight

1.523 Kilogram

Net weight

1.02 Kilogram

Volume

3.927 Liter

EAN

5702423003211

Approval

EAC; LLC CDC TYSK; PED; RoHS; RoHS China

Body material

Brass

Cap. tube length fraction [in]

78 3/4 in

Capillary tube gland Int/Ext

Internal

Capillary tube gland size [in]

1/2

Capillary tube gland standard

ISO 228-1

Capillary tube gland type

G

Capillary tube length [mm]

2000 mm

Charge type

Mass

China RoHS compliance

Yes

Connection Internal/External

Internal

Connection size [in]

3/4

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

3.9 gal/min

Differential pressure [bar] [max]

10 bar

Differential pressure [bar] [min]

0 bar

Differential pressure [psi] [max]

145 psi

Differential pressure [psi] [min]

0 psi

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(b), 6(c)

Flow direction indicator

Embossed 1-way arrow

In scope of WEEE and contain batteries

No

Kv value [m³/h]

3.4 m³/h

Max. pressure on sensor [bar]

25 bar

Max. pressure on sensor [psig]

362.6 psig

Max. sensor temperature [°C]

57 °C

Max. sensor temperature [°F]

134.6 °F

Max. test pressure [bar] Pe

25 bar

Max. test pressure [psig]

362.6 psig

Max. Working Pressure [bar]

16 bar

Max. Working Pressure [psig]

232 psig

Media

Neutral media

Medium temperature range [°C] [max]

130 °C

Medium temperature range [°C] [min]

-25 °C

Medium temperature range [°F] [max]

266 °F

Medium temperature range [°F] [min]

-13 °F

Opening configuration

Opens on rising sensor temp.

Orifice size [mm]

20 mm

Orifice size fraction [in]

4/5 in

Packing format

Multi pack

Product accessories

Generic accessories; Water valves accessories

Product group

Water regulating valves

Product Name Description

Thermo. operated water valve

Quantity per packing format

10 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

d0092edb-0ce7-409a-9808-fda08274cc60

Sensor size (Ø x L) [in]

3/8 x 7 3/32 in

Sensor size (Ø x L) [mm]

9.5 x 180 mm

Serviceable

Water valve spare parts

Temperature range [°C] [max]

30 °C

Temperature range [°C] [min]

0 °C

Temperature range [°F] [max]

86 °F

Temperature range [°F] [min]

32 °F

Type

AVTA 20

UK RoHS compliance

Out of scope
