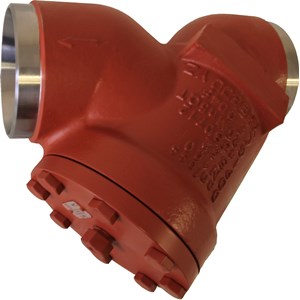

LỌC DANFOSS FIA-80 thẳng - C/N 148B5908

Gross weight

10.938 Kilogram

Net weight

7.6 Kilogram

Volume

16.748 Liter

EAN

5702428476362

Approval

CE; UKCA

Brand

SVL Flexline

China RoHS compliance

Out of scope

Colour Paint

Reddish brown

Connection material

Steel

Connection standard

ASME B 36.10M SCHEDULE 40

Cv value [gal/min] 100 plain

352.23 gal/min

Cv value [gal/min] 100 pleated

460.54 gal/min

Cv value [gal/min] 38 plain

380.85 gal/min

Cv value [gal/min] 38 pleated

497.96 gal/min

Cv value [gal/min] 72 plain

363.68 gal/min

Cv value [gal/min] 72 pleated

475.51 gal/min

Direction

Straightway

Equipment

Cover

EU RoHS compliance

Out of scope

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1; 2

In scope of WEEE and contain batteries

No

Inlet connection size [in]

3 in

Inlet connection size [mm]

80 mm

Inlet connection type

Butt weld

Kv value [m3/h] µ150 plain

80 m³/h

Kv value [m3/h] µ150 pleated

104.6 m³/h

Kv value [m3/h] µ250 plain

82.6 m³/h

Kv value [m3/h] µ250 pleated

108 m³/h

Kv value [m3/h] µ500 plain

86.5 m³/h

Kv value [m3/h] µ500 pleated

113.1 m³/h

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Outlet connection size [in]

3 in

Outlet connection size [mm]

80 mm

Outlet connection type

Butt weld

Packing format

Single pack

Parts Program name

FIA

PED category

II

Product accessories

SVL Flexline accessories

Product description

Filter housing

Product group

Strainers

Product Name Description

Strainer housing

Quantity per packing format

1 pc

REACH Candidate List substances

No

Refrigerants

R113; R114; R1233zd(E); R1234yf; R1234ze(E); R125; R1270; R1336mzz(Z); R134a; R152a; R170; R22; R227ea; R23; R236fa; R290; R32; R401A; R402A; R402B; R404A; R407A; R407B; R407C; R407F; R407H; R408A; R409A; R410A; R417A; R421A; R422A; R422B; R422D; R427A; R438A; R444B; R447A; R448A; R449A; R449B; R450A; R452A; R454B; R455A; R502 ; R503; R513A; R600; R600a; R717; R744; RE170; R507A; R1150; R245fa; R413A; R442A; R447B; R452B; R454A; R454C; R463A; R512A; R513B; R515A; R515B; R516A; R508B

Serviceable

SVL Flexline spare parts

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-76 °F

Type

FIA 80

UK RoHS compliance

Out of scope

Valve version

Standard version
