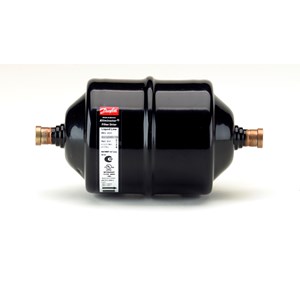

PHIN LỌC DANFOSS DCL-757S - C/N 023Z4548

Gross weight

3.442 Kilogram

Net weight

3.442 Kilogram

Volume

4.35 Liter

EAN

5702428157070

Acid capacity [g]

16.98 g

Acid capacity [oz]

0.599 oz

Activated alum/Molec sieve [%]

20% / 80%

Activated alumina [%]

20 %

Approval

UL

Body material

Steel

Braket

No

Brand

ELIMINATOR

China RoHS compliance

Yes exceed limitations

Connection material

Steel Cu-plated

Core

Solid core

Core Size code

75 cu.in.

Core type

Solid core

Drying Cap[Drops of Water]24°C

R134a: 2421; R290: --; R32: --; R404A: 2522; R407C: 2351; R410A: 2192; R507: 2641

Drying Cap[Drops of Water]52°C

R134a: 2216; R290: --; R32: --; R404A: 2389; R407C: 2167; R410A: 1949; R507: 2376

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a)

Filter application

Std Moisture & Acid Capacity

Flow capacity [kW]

R134a: 82.2; R290: --; R32: 125.2; R404A: 57.8; R407C: 84.2; R410A: 85.5; R507: 56.1

Flow capacity [TR]

R134a: 23.4; R290: --; R32: 35.6; R404A: 16.4; R407C: 23.9; R410A: 24.3; R507: 15.9

Flow direction indicator

Label printed 1-way arrow

Fluid Group

2

In scope of WEEE and contain batteries

No

Inlet 1 connection size [in]

7/8 in

Inlet connection type

Solder, ODF

LiqCap Cond (ARI 710-2009)[SI]

Delta p=0.07bar; tliq= 30°C; tvap=-15°C

LiqCapCond (ARI 710-2009)[IMP]

Delta p=1psi; tliq= 86°F; tvap=5°F

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

46 bar

Max. Working Pressure [psig]

667 psig

Molecular sieve [%]

80 %

Net volume [foz US]

37.46 Fluid Ounce US

Net volume [l]

1.108 L

Oil free refrigerants

R1234ze(E); R134a; R513A; R515A

Outlet 1 connection size [in]

7/8 in

Outlet connection type

Solder, ODF

Packing format

Multi pack

PED category

Art. 4, par. 3

Product description

Liquid line filter drier

Product group

Filter driers

Product Name Description

Hermetic filter drier

Quantity per packing format

12 pc

REACH Candidate List substances

No

Refrigerants

R1233zd(E); R1234yf; R1234ze(E); R125; R134a; R22/R407C; R23; R290; R32; R404A; R407A; R407F; R407H; R410A; R422B; R422D; R438A; R444B; R448A; R449A; R449B; R450A; R452A; R452B; R454B; R455A; R463A; R507A; R513A; R515B; R600

Serviceable

No

Shell volume [foz US]

61.49 Fluid Ounce US

Shell volume [l]

1.82 L

Solid core surface [cm2]

829 cm²

Solid core surface [in2]

128.53 in²

Solid core volume [cm3]

711 cm³

Solid core volume [in3]

43.37 in³

Temperature range [°C] [max]

70 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

160 °F

Temperature range [°F] [min]

-40 °F

Type

DCL

Type designation

DCL 757S

UK RoHS compliance

Out of scope

UL approval file name

SA6398

UL approved refrigerants

R125; R134a; R22; R23; R404A; R407A; R407C; R407F; R410A; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R507A; R513A
