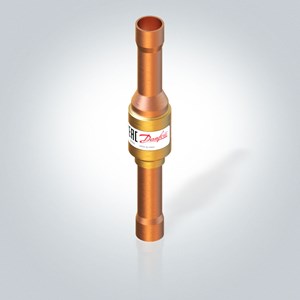

VAN MỘT CHIỀU DANFOSS NRV 12S / nối hàn - C/N 020B1016

Gross weight

0.098 Kilogram

Net weight

0.086 Kilogram

Volume

0.148 Liter

EAN

5702428571944

Approval

C UL US LISTED; EAC

Body material

Brass

China RoHS compliance

Out of scope

Connection material

Copper

Cv value [gal/min]

2.8 gal/min

Design

Piston

Direction

Straightway

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Single-flow

Flow direction indicator

On product label

Fluid Group

1; 2

Identical product

020B0137

Ignition source assessment

Yes

In scope of WEEE and contain batteries

No

Inlet connection type

Solder, ODF

Inlet size [mm]

12 mm

Kv value [m³/h]

2.42 m³/h

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

49 bar

Max. Working Pressure [psig]

710 psig

Min. Pressure drop [bar]

0.05 bar

Min. Pressure drop [psi]

0.7 psi

MinODP [bar]

0.02 bar

MinODP [psi]

0.29 psi

Oil free refrigerants

R1234ze(E); R134a; R513A; R515B; R516A

Outlet connection type

Solder, ODF

Outlet size [mm]

12 mm

Packing format

Multi pack

PED category

Art. 4, par. 3

Product group

Check valves

Product Name Description

Check valve

Quantity per packing format

24 pc

Rated cap cond, Hot gas [IMP]

tcond=86 °F; tdisc=176 °F; tevap=14 °F; thotgas=140 °F; tsub=9 °F

Rated cap cond, Hot gas [SI]

tcond=30 °C  ;tdisc=80 °C; tevap=-10 °C; thotgas=60 °C; tsub=5K

Rated cap cond, Liq. cap [IMP]

tcond=86 °F; tevap=14 °F; tsub=9 °F

Rated cap cond, Liq. cap [SI]

tcond=30 °C; tevap=-10 °C; tsub=5K

Refrigerants

R1233zd(E); R1234yf; R1234ze(E); R1270; R134a; R170; R22/R407C; R290; R32; R404A/R507A; R407A; R407F; R407H; R410A; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R513A; R515B; R516A; R600; R600a

Temperature range [°C] [max]

155 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

311 °F

Temperature range [°F] [min]

-58 °F

Type

NRV 12s

UK RoHS compliance

Out of scope

UL approval file name

REFRIGERANT VALVE 53R0

UL approved refrigerants

R1233zd(E); R1234yf; R1234ze(E); R1270; R134a; R170; R22; R290; R32; R404A; R407A; R407C; R407F; R407H; R410A; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R507A; R513A; R515B; R516A; R600; R600a
