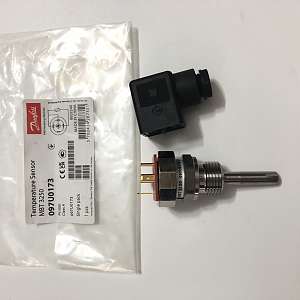

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3250, -40-85oC, Pt 1000 Ohm, L=50mm, G1/2 - C/N 097U0173

Gross weight

0.142 Kg

Net weight

0.139 Kg

Volume

0.193 Liter

EAN

5702424287351

Ambient temperature max. [°C]

85 °C

Ambient temperature max. [°F]

185 °F

China RoHS compliance

Yes exceed limitations

Connection standard

DIN 3852-E

Connection type

G

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a), 6(b), 6(c), 7(a), 7(c)-I

In scope of WEEE and contain batteries

No

Insertion length [in]

1.97 in

Insertion length [mm]

50 mm

Number of terminals [pcs]

3 pc

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

1/2

Process connection standard

DIN 3852-E

Process connection type

G

Product group

Sensors

Product Name Description

Temperature sensor

Protection tube diameter [in]

0.31 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

20 pc

Sensor elem. resistance [Ohm]

1000

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class A

Sensor element type

Pt

Sensor Insert

Exchangeable

Temperature range [°C] [max]

85 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

185 °F

Temperature range [°F] [min]

-40 °F

Type

MBT 3250

Type designation

MBT 3250-0100-050-193

UK RoHS compliance

Out of scope

Wires [pcs]

2 pc
