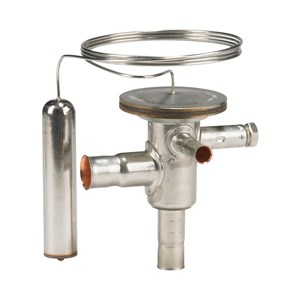

VAN TIẾT LƯU DANFOSS TCHE - C/N 068U4576

Gross weight

0.199 Kilogram

Net weight

0.179 Kilogram

Volume

0.488 Liter

EAN

5702428941938

Approval

EAC; LLC CDC TYSK

Body material

Stainless steel

Capillary tube length [in]

35 in

Capillary tube length [mm]

900 mm

China RoHS compliance

Yes exceed limitations

Connection material

Bi-metal: Steel/copper

Direction

Angleway

Equalization connection type

Solder, ODF

Equalization size [mm]

6 mm

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a), 6(c)

Flow direction

Single-flow

Flow direction indicator

Laser engraved 1-way arrow

Fluid Group

2

Identical product

068U4528

In scope of WEEE and contain batteries

No

Inlet connection type

Solder, ODF

Inlet size [mm]

10 mm

Max. Working Pressure [bar]

45.5 bar

Max. Working Pressure [psig]

660 psig

Orifice capacities [kW]

10 kW

Orifice capacities [TR]

2.9 TR

Orifice size

3

Outlet connection type

Solder, ODF

Outlet size [mm]

12 mm

Packing format

Multi pack

Parts included

Bulb strap

PED category

Art. 4, par. 3

Pressure equalization

Externally equalized

Product accessories

TXV accessories

Product group

Press. and temp. regul. valves

Product Name Description

Hot gas bypass regulator

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R410A

SCIP dossier no.

07795324-de66-41b2-9761-afe6640e393c

SCIP dossier product name

TU/TC - Thermostatic expansion valve

Serviceable

No

Static Superheat (SS) [°C]

2 °C

Static Superheat (SS) [°F]

3.6 °F

Superheat setting

Adjustable

Temperature range [°C] [max]

9 °C

Temperature range [°C] [min]

-1 °C

Temperature range [°F] [max]

48 °F

Temperature range [°F] [min]

30 °F

Type

TCHE

UA address


UK RoHS compliance

Out of scope
