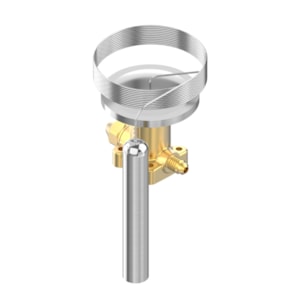

VAN TIẾT LƯU DANFOSS TE 12, R404A/R507A - C/N 067B3349

Mã sản phẩm: 067B3349

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN TIẾT LƯU DANFOSS TE 12, R404A/R507A - C/N 067B3349

Temperature range [°C]: -60 - -25, MOP Point [°C]: -20, Pressure equalization: Externally equalized

Product details

Approval	EAC; LLC CDC TYSK
Body material	Brass
Capillary tube length [in]	118 in
Capillary tube length [mm]	3000 mm
China RoHS compliance	Yes
Equalization connection type	Flare
Equalization size [in]	1/4 in
EU RoHS compliance	Out of scope
In scope of WEEE and contain batteries	No
Max. Working Pressure [bar]	28 bar
Max. Working Pressure [psig]	400 psig
MOP Point [psig]	MOP 30
MOP Point [°C]	-20 °C
MOP Point [°F]	-5 °F
Packing format	Multi pack
Parts Program name	TE 12
Pressure equalization	Externally equalized
Product group	Expansion valves
Product Name Description	Element for expansion valve
Quantity per packing format	9 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R404A/R507A
SCIP dossier no.	7a4717a2-7803-4273-9d94-59ccfb927c1e
SCIP dossier product name	TE
Temperature range [°C] [max]	-25 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	-15 °F
Temperature range [°F] [min]	-75 °F
Type	TE 12
Type designation	Element
UK RoHS compliance	Out of scope
