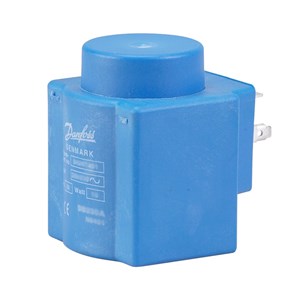

PHỤ TÙNG VAN COIL BY024CS 14W 24VAC, NO PLUG 50/60HZ - C/N 018F7655

Gross weight

0.28 Kilogram

Net weight

0.27 Kilogram

Volume

0.264 Liter

EAN

5702428041249

Actuator size

13.5 mm

Ambient temperature range [°C] [max]

50 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

122 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

CE; EAC; LLC CDC TYSK; UKCA; cURus

China RoHS compliance

Out of scope

Coil connection

DIN Spade

Coil design standard

VDE 0580

Coil fastening

Clip-on

Coil winding insulation class

Class H to IEC 85

Colour

Blue

Compliance

EN 60730-1; UL 429

EEE category

5 small equipment (any external dimension 50 cm)​

Electrical connection

DIN Spade

Electrical connection size

6.3 mm x 0.8 mm

Electrical connection standard

EN175301-803

Electrical connector

3 x spades

Enclosure rating IP

IP00

EU RoHS compliance

Out of scope

Frequency [Hz]

50/60 Hz

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Packing format

Multi pack

Parts Program name

EV210B ;EV212B ; EV220B 15 – 50 ; EV220B 6 – 22 ; EV220B 65 – 100; EV222B; EV250B; EV251B

Power consumption 50Hz [VA]

26 VA

Power consumption 60Hz [VA]

21 VA

Power consumption [W] 50Hz

14 W

Power consumption [W] 60Hz

12 W

Product accessories

Solenoid coil accessories

Product group

Solenoid valves

Product Name Description

Solenoid coil

Quantity per packing format

50 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Rel. Humidity [% RH] [max]

97 %

Rel. Humidity [% RH] [min]

0 %

Rel. Humidity conditions

Non-condensation

SCIP dossier no.

23785618-b379-4da7-a913-ecd40c8fae6d

SCIP dossier product name

Solenoid coils

Serviceable

No

Spare part number

018F7655

Supply voltage 50Hz Max [V]

24 V

Supply voltage 60Hz Max [V]

24 V

Supply voltage [V] AC

24 V

Type

BY024CS

Type designation

BY024CS

UK RoHS compliance

Out of scope

UL approval file name

MH29671
