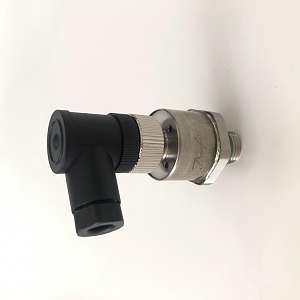

CẢM BIẾN ÁP SUẤT DANFOSS DST P140 0-25BAR, 4-20MA, G1/4, PLUG M12/PG9 - C/N 075G4172

Mã sản phẩm: 075G4172
Thương hiệu: Danfoss
Giá thị trường: 2.037.500 đ
Tiết kiệm: 407.500 đ (20%)
Giá bán: 1.630.000 đ
Số lượng:
Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN ÁP SUẤT DANFOSS DST P140 0-25BAR, 4-20MA, G1/4A, PLUG M12/PG9 - CODE NO 075G4172


CÁC MÃ THÔNG DỤNG CÓ SẴN:

Cảm biến áp suất Danfoss DST P140 0-6 bar, 4-20mA, G1/4A và Plug M12/ PG9 - C/N 075G4170

Cảm biến áp suất Danfoss DST P140 0-10 bar, 4-20mA, G1/4A và Plug M12/ PG9 - C/N 075G4171

Cảm biến áp suất Danfoss DST P140 0-16 bar, 4-20mA, G1/4A và Plug M12/ PG9 - C/N 075G4169

Cảm biến áp suất Danfoss DST P140 0-25 bar, 4-20mA, G1/4A và Plug M12/ PG9 - C/N 075G4172


Pressure reference: Gauge (relative), Output signal: Current, Electrical connection: M12 x 1, Pressure connection type: G, Pressure connection size: 1/4-A, Specification key: DST P140-2411-C1GB04-1

Product details

Gross weight

0.071 Kilogram

Net weight

0.059 Kilogram

Volume

0.147 Liter

EAN

5715162486535



+ supply

Pin 1

- common

Pin 3

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

CE evaluated

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

-40 °C

Electrical conn. comments

Metal M12

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Electrical Connector Color

BlackWhite

Enclosure rating IP

IP67

EU RoHS compliance

Yes

High Clipping Level

20.5

Housing material

304L

Identical product

075G1216

In scope of WEEE and contain batteries

No

International Article Number

5715162486535

Low Clipping level

3.8

Medium temperature range [°C] [max]

100 °C

Medium temperature range [°C] [min]

-40 °C

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

100 bar

Overload pressure max. [psi]

1450 psi

Packing format

Industrial pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4-A

Pressure connection standard

ISO 1179-2

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

25 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

362.5 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

No

Quantity per packing format

60 pc

REACH Candidate List substances

No

Response time max. [ms]

2 ms

Specification key

DST P140-2411-C1GB04-1

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [min]

8 V

Supply voltage [V] DC [min]

8 V

TEB inside CTR ±FS [%]

3 %

Type

DST P140

UK RoHS compliance

Out of scope

Wetted part material

304L/316L
