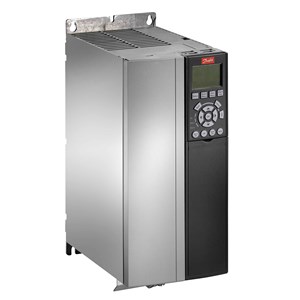

BIẾN TẦN DANFOSS VLT AUTOMATION DRIVE FC-302P11KT5E20H2XGCXXXSXXXXALBXCXXXXDX - 11KW - C/N 131X6834
Frequency converter
FC-302P11KT5E20H2XGCXXXSXXXXALBXCXXXXDX
VLT® AutomationDrive FC-302
(P11K) 11 KW / 15 HP, Three phase
380 - 500 VAC, (E20) IP20 / Chassis
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Coated PCB, No Mains Option
Latest release std. SW.
Frame: B3
No C1 option, No D option
PROFINET MCA 120, No B Option
Other options according to Model code
Model code:FC-302P11KT5E20H2XGCXXXSXXXXALBXCXXXXDX
The VLT® AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary to servo like applications on any machine or production line.
Product details
|
Gross weight |
11.26 kg |
||
|
Net weight |
10.24 kg |
||
|
Volume |
57.75 l |
||
|
EAN |
5710107259397 |
VLT® AUTOMATIONDRIVE FC 300 SERIES
|
Product View (Switch) |
GLBL |
Global (Standard) |
|
|
Product Group |
FC- |
VLT® AutomationDrive FC- |
|
|
Series |
302 |
302 |
|
|
Power Rating |
P11K |
(P11K) 11 KW / 15 HP |
|
|
Phase |
T |
Three phase |
|
|
Mains Voltage |
5 |
380 - 500 VAC |
|
|
Enclosure |
E20 |
(E20) IP20 / Chassis |
|
|
RFI Filter |
H2 |
RFI Filter |
|
|
Brake - Safe Stop |
X |
No brake chopper |
|
|
LCP |
G |
Graphical Loc. Cont. Panel |
|
|
Coating PCB |
C |
Coated PCB |
|
|
Mains Option |
X |
No Mains Option |
|
|
Adaptation A |
X |
Standard Cable Entries |
|
|
Adaptation B |
X |
No adaptation |
|
|
Software Release |
SXXX |
Latest release std. SW. |
|
|
Software Language Pack |
X |
Standard Language Pack |
|
|
A Option |
AL |
PROFINET MCA 120 |
|
|
B Option |
BX |
No B Option |
|
|
C0 Option MCO |
CX |
No C0 option |
|
|
C1 Option |
X |
No C1 option |
|
|
C Option Software |
XX |
No software option |
|
|
D Option |
DX |
No D option |
|
|
Frame Size |
B3 |
B3 |
|
|
Typecode Part 1 |
FC-302P11KT5E20H2XGC |
||
|
Typecode Part 2 |
XXXSXXXXALBXCXXXXDX |
||
|
Product Catalog |
GLBL |
Global (Standard) |
|
|
Power 160% (HO) [KW] |
11 |
||
|
Power 110% (NO) [KW] |
15 |
||
|
Height [mm] |
399,0 |
||
|
Width w/ no C options [mm] |
165,0 |
||
|
Width w/ two C options [mm] |
225,0 |
||
|
Depth [mm] |
249,0 |
||
|
Depth with Option A/B [mm] |
262,0 |
||
|
kVA |
16.6 |
||
|
Power Loss NO [W] |
392 |
||
|
Power Loss NO [W] |
392 |
||
|
Power Loss HO [W] |
291 |
||
|
Power Loss HO [W] |
291 |
||
|
Continuous Current (NO) [A] |
32 |
||
|
Intermittent Current (NO) [A] |
35.2 |
||
|
Continuous Current (NO) [A] |
27 |
||
|
Intermittent Current (NO) [A] |
29.7 |
||
|
Continuous Current (HO) [A] |
24 |
||
|
Intermittent Current (HO) [A] |
38.4 |
||
|
Continuous Current (HO) [A] |
21 |
||
|
Intermittent Current (HO) [A] |
33.6 |
||
|
Calculated Gross Weight [kg] |
11.26 |
||
|
Calculated Net Weight [kg] |
10.24 |
||
|
Plant from Orderline |
B901 |
||
|
Vendor |
ERR01 |
Cannot Determine Vendor |
|
|
Modelcode01 |
FC-302P11KT5E20H2XGC |
||
|
Modelcode02 |
XXXSXXXXALBXCXXXXDX |
