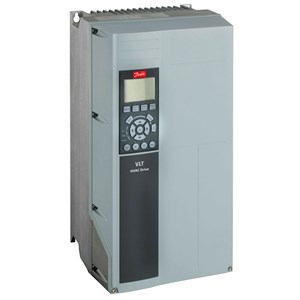

BIẾN TẦN DANFOSS VLT AUTOMATION DRIVE FC-302P7K5T5E55H2BGXXXXSXXXXA0BXCXXXXDX - 7.5 KW - C/N 131H8966
Frequency converter
FC-302P7K5T5E55H2BGXXXXSXXXXA0BXCXXXXDX
VLT® AutomationDrive FC-302
(P7K5) 7.5 KW / 10 HP, Three phase
380 - 500 VAC, IP55 / Type 12
RFI Filter
Brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
Frame: A5
No C1 option, No D option
PROFIBUS DP MCA 101, No B Option
Other options according to Model code
Model code:FC-302P7K5T5E55H2BGXXXXSXXXXA0BXCXXXXDX
The VLT® AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary to servo like applications on any machine or production line
Product details
|
Gross weight |
12.73 kg |
||
|
Net weight |
12.11 kg |
||
|
Volume |
52.36 l |
||
|
EAN |
5702427594722 |
VLT® AUTOMATIONDRIVE FC 300 SERIES
|
Product View (Switch) |
GLBL |
Global (Standard) |
|
|
Product Group |
FC- |
VLT® AutomationDrive FC- |
|
|
Series |
302 |
302 |
|
|
Power Rating |
P7K5 |
(P7K5) 7.5 KW / 10 HP |
|
|
Phase |
T |
Three phase |
|
|
Mains Voltage |
5 |
380 - 500 VAC |
|
|
Enclosure |
E55 |
IP55 / Type 12 |
|
|
RFI Filter |
H2 |
RFI Filter |
|
|
Brake - Safe Stop |
B |
Brake chopper |
|
|
LCP |
G |
Graphical Loc. Cont. Panel |
|
|
Coating PCB |
X |
Not coated PCB |
|
|
Mains Option |
X |
No Mains Option |
|
|
Adaptation A |
X |
Standard Cable Entries |
|
|
Adaptation B |
X |
No adaptation |
|
|
Software Release |
SXXX |
Latest release std. SW. |
|
|
Software Language Pack |
X |
Standard Language Pack |
|
|
A Option |
A0 |
PROFIBUS DP MCA 101 |
|
|
B Option |
BX |
No B Option |
|
|
C0 Option MCO |
CX |
No C0 option |
|
|
C1 Option |
X |
No C1 option |
|
|
C Option Software |
XX |
No software option |
|
|
D Option |
DX |
No D option |
|
|
Frame Size |
A5 |
A5 |
|
|
Typecode Part 1 |
FC-302P7K5T5E55H2BGX |
||
|
Typecode Part 2 |
XXXSXXXXA0BXCXXXXDX |
||
|
Product Catalog |
NO_VIEW |
NO VIEW |
|
|
Power 160% (HO) [KW] |
7.5 |
||
|
Height [mm] |
420,0 |
||
|
Width w/ no C options [mm] |
242,0 |
||
|
Depth [mm] |
200,0 |
||
|
Depth with Option A/B [mm] |
200,0 |
||
|
kVA |
11.1 |
||
|
Power Loss HO [W] |
225 |
||
|
Power Loss HO [W] |
225 |
||
|
Continuous Current (HO) [A] |
16 |
||
|
Intermittent Current (HO) [A] |
25.6 |
||
|
Continuous Current (HO) [A] |
14.5 |
||
|
Intermittent Current (HO) [A] |
23.2 |
||
|
Calculated Gross Weight [kg] |
12.73 |
||
|
Calculated Net Weight [kg] |
12.11 |
||
|
Vendor |
ERR01 |
Cannot Determine Vendor |
|
|
Modelcode01 |
FC-302P7K5T5E55H2BGX |
||
|
Modelcode02 |
XXXSXXXXA0BXCXXXXDX |
