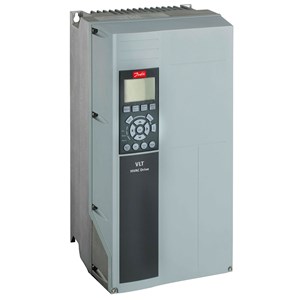

BIẾN TẦN DANFOSS VLT AUTOMATION DRIVE FC-302P2K2T5E66H2XGXXXXSXXXXAXBXCXXXXDX - 2.2 KW - C/N 131B6998
Frequency converter
FC-302P2K2T5E66H2XGXXXXSXXXXAXBXCXXXXDX
VLT® AutomationDrive FC-302
(P2K2) 2.2 KW / 3.0 HP, Three phase
380 - 500 VAC, (E66) IP66 / NEMA 4X
RFI Filter
No brake chopper
Graphical Loc. Cont. Panel
Not coated PCB, No Mains Option
Latest release std. SW.
Frame: A5
No C1 option, No D option
No A Option, No B Option
Other options according to Model code
Model code:FC-302P2K2T5E66H2XGXXXXSXXXXAXBXCXXXXDX
The VLT® AutomationDrive represents a single drive concept that controls the entire range of operations from ordinary to servo like applications on any machine or production line.
Product details
|
Gross weight |
11.61 kg |
||
|
Net weight |
10.99 kg |
||
|
Volume |
59.024 l |
||
|
EAN |
5702427350724 |
VLT® AUTOMATIONDRIVE FC 300 SERIES
|
Product View (Switch) |
GLBL |
Global (Standard) |
|
|
Product Group |
FC- |
VLT® AutomationDrive FC- |
|
|
Series |
302 |
302 |
|
|
Power Rating |
P2K2 |
(P2K2) 2.2 KW / 3.0 HP |
|
|
Phase |
T |
Three phase |
|
|
Mains Voltage |
5 |
380 - 500 VAC |
|
|
Enclosure |
E66 |
(E66) IP66 / NEMA 4X |
|
|
RFI Filter |
H2 |
RFI Filter |
|
|
Brake - Safe Stop |
X |
No brake chopper |
|
|
LCP |
G |
Graphical Loc. Cont. Panel |
|
|
Coating PCB |
X |
Not coated PCB |
|
|
Mains Option |
X |
No Mains Option |
|
|
Adaptation A |
X |
Standard Cable Entries |
|
|
Adaptation B |
X |
No adaptation |
|
|
Software Release |
SXXX |
Latest release std. SW. |
|
|
Software Language Pack |
X |
Standard Language Pack |
|
|
A Option |
AX |
No A Option |
|
|
B Option |
BX |
No B Option |
|
|
C0 Option MCO |
CX |
No C0 option |
|
|
C1 Option |
X |
No C1 option |
|
|
C Option Software |
XX |
No software option |
|
|
D Option |
DX |
No D option |
|
|
Frame Size |
A5 |
A5 |
|
|
Typecode Part 1 |
FC-302P2K2T5E66H2XGX |
||
|
Typecode Part 2 |
XXXSXXXXAXBXCXXXXDX |
||
|
Product Catalog |
NO_VIEW |
NO VIEW |
|
|
Power 160% (HO) [KW] |
2.2 |
||
|
Height [mm] |
420,0 |
||
|
Width w/ no C options [mm] |
242,0 |
||
|
Depth [mm] |
200,0 |
||
|
Depth with Option A/B [mm] |
200,0 |
||
|
kVA |
3.88 |
||
|
Power Loss HO [W] |
88 |
||
|
Power Loss HO [W] |
88 |
||
|
Continuous Current (HO) [A] |
5.6 |
||
|
Intermittent Current (HO) [A] |
8.96 |
||
|
Continuous Current (HO) [A] |
4.8 |
||
|
Intermittent Current (HO) [A] |
7.68 |
||
|
Calculated Gross Weight [kg] |
11.61 |
||
|
Calculated Net Weight [kg] |
10.99 |
||
|
Vendor |
ERR01 |
Cannot Determine Vendor |
|
|
Modelcode01 |
FC-302P2K2T5E66H2XGX |
||
|
Modelcode02 |
XXXSXXXXAXBXCXXXXDX |
