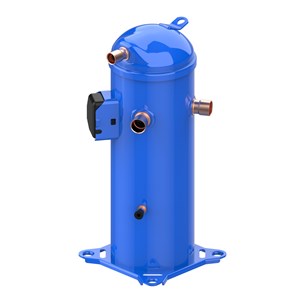

MÁY NÉN DANFOSS HCM120T4LC6 - C/N 121L0391

Gross weight

49.5 Kilogram

Net weight

44 Kilogram

Volume

0.06 Cubic meter

EAN

5702424504427

Approval

CE; UL; UKCA

Brand technique

Scroll compressor

Capacity control

Fixed speed

China RoHS compliance

Out of scope

Colour

Blue

Compressor power supply [V]

380-415/3/50 460/3/60

Configuration code

Single

Connection type

Brazed

Description

HCM120T4

Diameter [mm]

184 mm

Discharge connection height [mm]

519 mm

Discharge connection pipe size [in]

7/8 in

Discharge connection size [in]

7/8 in

Drawing number

0SR4103B-2

Economizer

No

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a), 6(a)-I, 7(a), 7(c)-I, 8(b), 9(b)

Family

HCM

Fitting standard

ODF

Frequency [Hz]

50/60

Gauge port HP

None

Gauge port LP

None

Gaz equalization

None

Glass mounting

None

High value of nominal voltage at 50Hz [V]

415 V

High value of nominal voltage at 60Hz [V]

460 V

High value of voltage range at 50Hz [V]

457 V

High value of voltage range at 60Hz [V]

506 V

In scope of WEEE and contain batteries

No

IP protection class

IP22

Length [mm]

232 mm

Low value of nominal voltage at 50Hz [V]

380 V

Low value of nominal voltage at 60Hz [V]

460 V

Low value of voltage range at 50Hz [V]

342 V

Low value of voltage range at 60Hz [V]

414 V

LRA

140 A

Max pressure (PS) - high side

31.1 bar

Max pressure (PS) - low side

26.2 bar

MCC

25 A

Model number

HCM120T4LC6

Motor protection

Internal overload protector

Network power supply [V/Ph/Hz]

380-415/3/50 460/3/60

Oil charge [L]

2.66 L

Oil equalization

None

Oil reference

160ABM

Oil type

Alkylbenzene

Packing format

Single pack

Packing quantity

1

Phase

3

Power connections

Screw connectors 10-32 UNF x 9.5

Product group

Hermetic compressors

Product Name Description

Scroll compressor HCM

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerant charge [kg] [Max]

7.26 kg

Refrigerants

R22

RLA

19.2 A

Rotational speed at 50Hz [rpm]

2900 rpm

Rotational speed at 60Hz [rpm]

3500 rpm

SCIP dossier no.

6987e9ab-f9b7-473c-9c29-6cb05443e8ef

Segment usage

Air conditioning

Suction connection height [mm]

369 mm

Suction connection material

-

Suction connection pipe size [in]

1 1/8 in

Suction connection size [in]

1 1/8 in

Swept volume [cm3]

162.4 cm³

Technology

Scroll

Torque earth [Nm]

2 N-m

Torque power [Nm]

3 N-m

Total height [mm]

545 mm

Type

HCM120

UK RoHS compliance

Out of scope

Viscosity [cP]

32 cP

Width [mm]

232 mm

Winding resistance 1-2 [Ohm]

1.13

Winding resistance 1-3 [Ohm]

1.11

Winding resistance 2-3 [Ohm]

1.1
