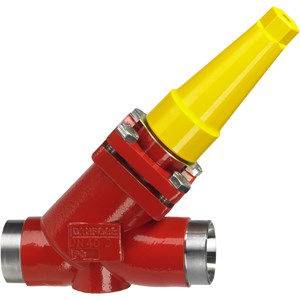

VAN TIẾT LƯU TAY DANFOSS REG-SB 40, Steel - C/N 148B5613

Gross weight

4.61 Kilogram

Net weight

4 Kilogram

Volume

7.524 Liter

EAN

5702428474221

Approval

CE; CRN; EAC; LLC CDC TYSK; UKCA

Body material

Steel

Brand

SVL Flexline

China RoHS compliance

Out of scope

Colour Paint

Reddish brown

Connection material

Steel

Connection standard

ASME B 36.10M SCHEDULE 80

Cv value [gal/min]

23.2 gal/min

Direction

Straightway

Equipment

Cap

EU RoHS compliance

Out of scope

Flow area [in2]

0.823 in²

Flow area [mm2]

531 mm²

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1; 2

In scope of WEEE and contain batteries

No

Inlet connection size [in]

1 1/2 in

Inlet connection size [mm]

40 mm

Inlet connection type

Butt weld

Kv value [m³/h]

20 m³/h

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Neck

Standard

Outlet connection size [in]

1 1/2 in

Outlet connection size [mm]

40 mm

Outlet connection type

Butt weld

Packing format

Single pack

Parts Program name

REG-SA / REG-SB

PED category

II

Product accessories

SVL Flexline accessories

Product description

Hand Regulating Valve

Product group

Shut-off and regulating valves

Product Name Description

Hand operated regulating valve

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R134a; R22; R290; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R409A; R410A; R421A; R502; R600; R600a; R717; R744; R507A; R1234yf; R1234ze(E); R125; R152a; R227ea; R236fa; R245fa; R32; R407H; R413A; R417A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R512A; R513A; R513B; R515A; R515B; R516A

Serviceable

SVL Flexline spare parts

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-76 °F

Type

REG-SB 40

UK RoHS compliance

Out of scope

Valve version

Standard version
