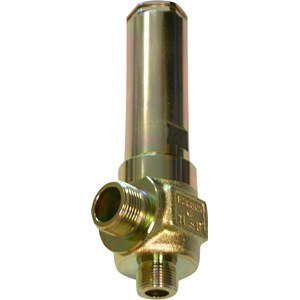

VAN AN TOÀN DANFOSS SFA 15, G, 24 bar - C/N 148F3324

Mã sản phẩm: 148F3324

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN AN TOÀN DANFOSS SFA 15, G, 24 bar - C/N 148F3324

Product details

Approval	CE; EAC; UKCA
Certified Coef of Disc	0.73 kg
China RoHS compliance	Out of scope
Comments	0
Connection Internal/External	External
Connection size [in]	1/2 in
Connection size [mm]	15 mm
Connection standard	ISO 228-1
Connection type	G
Direction	Angleway
EU RoHS compliance	Out of scope
Flow area [in2]	0.206 in²
Flow area [mm2]	133 mm²
Flow diameter [in]	0.512 in
Flow diameter [mm]	13 mm
Fluid Group	1
In scope of WEEE and contain batteries	No
Inlet connection size [in]	3/4
Lift [mm]	4.8 mm
Nominal diameter	DN 15
Outlet connection size [in]	1
Packing format	Single pack
PED category	IV
Pressure certificate	TÜV certificate included
Pressure setting [bar]	24 bar
Pressure setting [psig]	348 psig
Product description	Safety Relief Valve
Product group	Safety relief valves
Product Name Description	Safety relief valve
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R134a; R170; R22; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R409A; R410A; R421A; R502; R600; R600a; R717; R744; R507A; R1234yf; R1234ze(E); R125; R152a; R227ea; R236fa; R245fa; R290; R32; R407H; R413A; R417A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R452C; R454A; R454B; R454C; R455A; R463A; R512A; R513A; R513B; R515A; R515B; R516A
Temperature range [°C] [max]	100 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	212 °F
Temperature range [°F] [min]	-58 °F
Type	SFA 15
UK RoHS compliance	Out of scope
