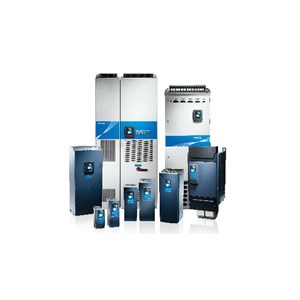

BIẾN TẦN VACON NXS00615-G2H1SSS-A1A2B40000+FL26+DPAP+DLCN 22/30KW 380-500V, IP21, Brake chopper, Graphical Panel - C/N 136L8999
7DS-006152-000028713
This product has been discontinued.
NXS00615-G2H1SSS-A1A2B40000+FL26+DPAP+DLCN
Vacon NXS Frequency Converter
380 – 500 Vac (465-800 Vdc), 61 Amp,IP21/NEMA1
Graphical panel
IEC61800-3
Integrated Brake chopper
A Slot: 6DI,DO,2AI,1AO,+10Vr,+24V
C Slot: AI,2AO(mA,isol),+24V/EXT
D Slot: No board
E Slot: No board
Manual: Chinese
Frame 06
B Slot: 2RO(NO/NC)
Other options according to Model code
Model code:NXS00615-G2H1SSS-A1A2B40000+FL26+DPAP+DLCN
The VACON® NX family of air-cooled and liquid-cooled drives is
designed for a broad range of demanding industrial applications.
Product details
|
Gross weight |
19.5 kg |
||
|
Net weight |
18.5 kg |
||
|
Volume |
0 l |
||
|
EAN |
5710108855789 |
VACON NX_
|
Product View (Switch) |
GLBL |
Global (Standard) |
|
|
Product Group |
NXS |
NXS Frequency Converter |
|
|
Customized Drive |
+BM25 |
Vacon Blue NXS/NXL Customizati |
|
|
Mechanical Modification |
S |
Standard air cooled drive |
|
|
Mains voltage |
5- |
380 – 500 Vac (465-800 Vdc) |
|
|
Current |
0061 |
61 Amp |
|
|
Control Keypad |
G |
Graphical panel |
|
|
Enclosure |
2 |
IP21/NEMA1 |
|
|
EMC emission levels |
H |
IEC61800-3 |
|
|
Brake Chopper |
1 |
Integrated Brake chopper |
|
|
Electrical Modification |
S |
6-pulse with choke |
|
|
Card Modifications |
S- |
Direct connection / standard |
|
|
Shipping Package |
+GSCB |
Cardboard box as Shipping pack |
|
|
Warranty |
+WT01 |
Warranty 12/18 months |
|
|
Gland Plate Option |
+QGLC |
Inch conduit plate |
|
|
Option Slot A |
A1 |
6DI,DO,2AI,1AO,+10Vr,+24V |
|
|
Option Slot B |
A2 |
2RO(NO/NC) |
|
|
Option Slot C |
B4 |
AI,2AO(mA,isol),+24V/EXT |
|
|
Option Slot D |
00 |
No board |
|
|
Option Slot E |
00 |
No board |
|
|
Firmware language package |
+FL26 |
UK,RU,CN;Others |
|
|
Documentation Level |
+DPAP |
Paper manuals |
|
|
Documentation Lang. Preference |
+DLCN |
Chinese |
|
|
System Firmware |
+FNS02 |
System software NXS2 |
|
|
Software license |
NONE |
no software license |
|
|
Application |
+A000 |
No Special Application |
|
|
Parameter Set |
NONE |
none |
|
|
Motor Parameter Default |
+LS50 |
Default Motor frequency 50HZ |
|
|
Labeling options |
+LPC1 |
no additional labels |
|
|
Special BoM structure |
+SPC0 |
Standard BoM Configuration |
|
|
CE Approval |
+GACE |
CE Approval |
|
|
UL Approval |
+GAUL |
UL approval |
|
|
RCM Approval |
+GACT |
RCM Approval N16307 |
|
|
Marine approval |
NONE |
no marine approval |
|
|
KC Approval |
+GAKC |
Korean Approval |
|
|
Ukrainian Approval |
+GAUA |
Ukrainian Approval |
|
|
EAC Approval |
+GAEA |
EAC Approval |
|
|
Region |
-R00 |
International (-R00) |
|
|
Frame Size |
FR06 |
Frame 06 |
|
|
Sub family identification |
NONE |
Normal customer ordered |
|
|
Customer specific power variat |
NONE |
Normal power rating |
|
|
Typecode Part 1 |
7DS-006152 |
||
|
Typecode Part 2 |
-000028713 |
||
|
Salestext |
FR0600615-2H |
||
|
Modelcode01 |
NXS00615-G2H1SSS- |
||
|
Modelcode02 |
A1A2B40000 |
||
|
Modelcode03 |
+FL26 |
||
|
Modelcode05 |
+DPAP+DLCN |
||
|
Calculated Net Weight [kg] |
18.5 |
||
|
Calculated Gross Weight [kg] |
19.5 |
||
|
Motor Power Low Overload [kW] |
30 |
||
|
Motor Power High Overload [kW] |
22 |
||
|
Dimensions WxHxD [mm] |
195X519X237 |
||
|
Continuous Current (NO) [A] |
61 |
||
|
Continuous Current (HO) [A] |
46 |
||
|
Product Catalog |
NO_VIEW |
NO VIEW |
|
|
Prefix VXSNXLM |
7 |
||
|
Platform VXSNXLM |
D |
||
|
Stockcode part 1 |
7DS-006152-117G8H |
||
|
Stock Code |
7DS-006152 |
||
|
check if complete |
OK |
||
|
Calculated Net Weight |
18.5 |
||
|
Help Counter |
1 |
||
|
Vendor |
ERR01 |
Cannot Determine Vendor |
|
|
Recommended Factory |
ERR01 |
Cannot Determine Vendor |
|
|
Recommended Plant |
ERR01 |
