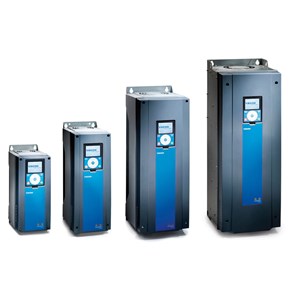

BIẾN TẦN VACON 0100-3L-0072-5+SBF4+SEBJ+FL05+DPAP+FBIE - C/N 136F3957
70-AB3L00725W07B220BM26-00049098
Frequency converter
VACON0100-3L-0072-5+SBF4+SEBJ+FL05+DPAP+FBIE
VACON 100 Industrial
380-500 Vac, 72 Amp, IP21/NEMA1
Graphical Keypad MK01
C2 Commercial&Industry Environ
B Slot: F4,2 Relay board with therm
C Slot: No board
D Slot: No board
Fieldbus: IndEth (ProfinetIO,EthernetIP)
Manual: English
Frame 07
E Slot: BJ,STO, ATEX therm
ATEX: II (2) GD
Other options according to Model code
Model code:VACON0100-3L-0072-5+SBF4+SEBJ+FL05+DPAP+FBIE
Product details
|
Gross weight |
39 kg |
||
|
Net weight |
38 kg |
||
|
Volume |
0 l |
||
|
EAN |
5710108503192 |
VACON 0100
|
Product View (Switch) |
GLBL |
Global (Standard) |
|
|
Segment |
NONE |
VACON 100 Industrial |
|
|
Region Code |
-R00 |
R00 International |
|
|
Mains voltage |
-5 |
380-500 Vac |
|
|
Current rating |
-0072 |
72 Amp |
|
|
Installation options |
-DM |
DM Drive Module |
|
|
Enclosure |
+IP21 |
IP21/NEMA1 |
|
|
Control panel |
+HMGR |
Graphical Keypad MK01 |
|
|
EMC emission limit category |
+EMC2 |
C2 Commercial&Industry Environ |
|
|
Common mode filter (for DM) |
+P000 |
No Option |
|
|
DUT filter (for DM) |
+P000 |
No Option |
|
|
Brake chopper |
+DBNO |
No dynamic braking device |
|
|
Real time clock option |
+SRNO |
No Battery for real time clock |
|
|
Configurable power range |
NONE |
None |
|
|
Power connections |
+P000 |
No Power options (+P000) |
|
|
Cable entry |
+QGLM |
Metric conduit plate |
|
|
Additional Equipment B |
+Q000 |
No option for Qxxx_B (+Q000) |
|
|
Additonal Equipment C |
+Q000 |
No additonal option for Qxxx_C |
|
|
Shipping package |
+GSCB |
Cardboard Box as Shipping pack |
|
|
Marine construction |
+E000 |
no option |
|
|
B-Slot Option Board |
+SBF4 |
F4,2 Relay board with therm |
|
|
C- Slot Option Board |
+SC00 |
No board |
|
|
D-Slot Option Board |
+SD00 |
No board |
|
|
E-Slot Option Board |
+SEBJ |
BJ,STO, ATEX therm |
|
|
Internal FB selection |
+FBIE |
IndEth (ProfinetIO,EthernetIP) |
|
|
Documentation level |
+DPAP |
Paper Manuals |
|
|
Document language preference |
+DLUK |
English |
|
|
Firmware Language Pack |
+FL05 |
UK, DE, EE, HU, RO, TR lang |
|
|
Application |
+A0000 |
No Application |
|
|
Parameter Set |
+L0000 |
No application parameter set |
|
|
Motor parameter default freq |
+LS50 |
50 Hz def motor freq settings |
|
|
Unit for measure for display |
+LSSI |
Metric Units of Measure |
|
|
Labeling options |
+LPC1 |
no additional labels |
|
|
UL approval |
+GAUL |
UL Approval (+GAUL) |
|
|
Marine approval |
NONE |
None |
|
|
RCM Approval |
+GACT |
RCM Approval N16307 |
|
|
KC approval |
+GAKC |
KC Approval |
|
|
Ukrainian approval |
+GAUA |
Ukrainian Approval |
|
|
EAC Approval |
+GAEA |
EAC Approval |
|
|
Auxilary power supply |
+C000 |
no option |
|
|
DC power supply for aux device |
+C000 |
no option |
|
|
AC socket for aux devices |
+C000 |
no option |
|
|
Input Devices |
NONE |
none_ |
|
|
Common mode filter (for ED) |
+P000 |
no option |
|
|
DU/DT, Sine filter (for ED) |
+P000 |
no option |
|
|
Terminal Options |
NONE |
none_ |
|
|
Door Equipments |
+C000 |
no option |
|
|
Cabinet heater |
+C000 |
no option |
|
|
Cabinet light |
+C000 |
no option |
|
|
Motor heater control |
+C000 |
no option |
|
|
Emergency stop options |
+C000 |
no option |
|
|
Insulation fault sensor |
+C000 |
no option |
|
|
Cabling from top |
+C000 |
no option |
|
|
Back channel cooling |
+C000 |
no option |
|
|
Cabinet Plinth |
+C000 |
no option |
|
|
Empty extension segment |
NONE |
None |
|
|
Standardized cabinet solution |
NONE |
None |
|
|
Engineered cabinet solution |
NONE |
None |
|
|
Product Group |
VACON |
VACON |
|
|
Product Series |
0100 |
Vacon 100 series |
|
|
Phase |
-3L |
3 Phase AC Input |
|
|
Customized |
+BM26 |
Vacon 100 |
|
|
Main Circuit |
+M000 |
NONE |
|
|
Firmware |
+F0072 |
Vacon0100 Software package |
|
|
Max output frequency |
NONE |
None |
|
|
Terminal Box |
+T000 |
NONE |
|
|
Bypass Control Operation Mode |
NONE |
none_ |
|
|
Bypass Input Type |
NONE |
none_ |
|
|
Bypass power connection type |
NONE |
none_ |
|
|
CE approval |
+GACE |
CE Approval (+GACE) |
|
|
ATEX Approval |
NONE |
None |
|
|
County Specific Approval |
NONE |
None |
|
|
Warrenty time |
+WT01 |
Warranty 12/18 months (+WT01) |
|
|
Frame Size |
MR07 |
Frame 07 |
|
|
Product Catalog |
NO_VIEW |
NO VIEW |
|
|
Modelcode01 |
VACON0100-3L-0072-5 |
||
|
Modelcode02 |
+SBF4+SEBJ+FL05+DPAP+FBIE |
||
|
Calculated Net Weight [kg] |
37.5 |
||
|
Calculated Gross Weight [kg] |
38.5 |
||
|
Motor Power Low Overload [kW] |
37 |
||
|
Motor Power High Overload [kW] |
30 |
||
|
Dimensions WxHxD [mm] net |
237 X 660 X 259 |
||
|
Dimensions WxHxD [mm] Gross |
310 X 740 X 310 |
||
|
Dimensions WxHxD [mm] |
237X660X259 |
||
|
Continuous Current (NO) [A] |
72 |
||
|
Continuous Current (HO) [A] |
61 |
||
|
Motor Power HP Low Overload |
50 |
||
|
Motor Power HP High Overload |
40 |
||
|
ATEX Marking 1 |
ATEX: II (2) GD |
||
|
Typecode Part 1 |
70-AB3L00725W07B220BM26 |
||
|
Typecode Part 2 |
-00049098 |
||
|
Stockcode part 1 |
70-AB3L00725W07B220BM26 |
||
|
Stockcode part 2 |
-00049098 |
||
|
check if complete |
OK |
||
|
Vendor |
ERR01 |
Cannot Determine Vendor |
|
|
Recommended Factory |
ERR01 |
Cannot Determine Vendor |
|
|
Help Counter |
25 |
||
|
Help Counter |
2 |
||
|
Calculated Net Weight |
38 |
||
|
Salestext |
MR07-0072-5+IP21+EMC2 |
||
|
Sub family identification |
NONE |
Normal customer ordered |
|
|
Recommended Plant |
ERR01 |
||
|
ECCN US |
3A999.a |
||
|
ECCN EU |
Y901 |
