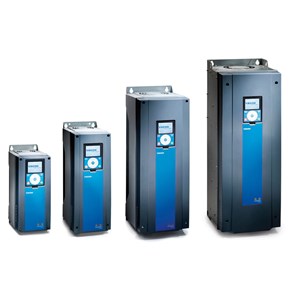

BIẾN TẦN VACON0100-3L-0031-5-FLOW+IP54 - C/N 135N2509

Gross weight

11 kg

Net weight

10 kg

Volume

0 l

EAN

5710108186838

Product View (Switch)

GLBL

Global (Standard)

Segment

-FLOW

VACON 100 FLOW

Region Code

-R00

R00 International

Mains voltage

-5

380-500 Vac

Current rating

-0031

31 Amp

Installation options

-DM

DM Drive Module

Enclosure

+IP54

IP54/NEMA12

Control panel

+HMGR

Graphical Keypad MK01

EMC emission limit category

+EMC2

C2 Commercial&Industry Environ

Common mode filter (for DM)

+P000

No Option

DUT filter (for DM)

+P000

No Option

Brake chopper

+DBNO

No dynamic braking device

Real time clock option

+SRNO

No Battery for real time clock

Configurable power range

NONE

None

Power connections

+P000

No Power options (+P000)

Cable entry

+QGLM

Metric conduit plate

Additional Equipment B

+Q000

No option for Qxxx_B (+Q000)

Additonal Equipment C

+Q000

No additonal option for Qxxx_C

Shipping package

+GSCB

Cardboard Box as Shipping pack

Marine construction

+E000

no option

B-Slot Option Board

+SBF3

F3,3 Relay board

C- Slot Option Board

+SC00

No board

D-Slot Option Board

+SD00

No board

E-Slot Option Board

+SE00

No board

Internal FB selection

+FBM1

Std protocol,Modbus,N2,BacNet

Documentation level

+DQCK

Quick Guide

Document language preference

+DLUK

English

Firmware Language Pack

+FL01

UK, DE, FI, SE, IT, FR lang

Application

+A0000

No Application

Parameter Set

+L0000

No application parameter set

Motor parameter default freq

+LS50

50 Hz def motor freq settings

Unit for measure for display

+LSSI

Metric Units of Measure

Labeling options

+LPC1

no additional labels

UL approval

+GAUL

UL Approval (+GAUL)

Marine approval

NONE

None

RCM Approval

+GACT

RCM Approval N16307

KC approval

+GAKC

KC Approval

Ukrainian approval

+GAUA

Ukrainian Approval

EAC Approval

+GAEA

EAC Approval

Auxilary power supply

+C000

no option

DC power supply for aux device

+C000

no option

AC socket for aux devices

+C000

no option

Input Devices

NONE

none_

Common mode filter (for ED)

+P000

no option

DU/DT, Sine filter (for ED)

+P000

no option

Terminal Options

NONE

none_

Door Equipments

+C000

no option

Cabinet heater

+C000

no option

Cabinet light

+C000

no option

Motor heater control

+C000

no option

Emergency stop options

+C000

no option

Insulation fault sensor

+C000

no option

Cabling from top

+C000

no option

Back channel cooling

+C000

no option

Cabinet Plinth

NONE

None

Empty extension segment

NONE

None

Standardized cabinet solution

NONE

None

Engineered cabinet solution

NONE

None

Product Group

VACON

VACON

Product Series

0100

Vacon 100 series

Phase

-3L

3 Phase AC Input

Customized

+BM2H

Vacon 100-FLOW

Main Circuit

+M000

NONE

Firmware

+F0159

Vacon0100-Flow Software pack

Max output frequency

NONE

None

Terminal Box

+T000

NONE

Bypass Control Operation Mode

NONE

none_

Bypass Input Type

NONE

none_

Bypass power connection type

NONE

none_

CE approval

+GACE

CE Approval (+GACE)

ATEX Approval

NONE

None

County Specific Approval

NONE

None

Warrenty time

+WT01

Warranty 12/18 months (+WT01)

Frame Size

MR05

Frame 05

Product Catalog

NO_VIEW

NO VIEW

Modelcode01

VACON0100-3L-0031-5

Modelcode02

-FLOW+IP54

Calculated Net Weight [kg]

10

Calculated Gross Weight [kg]

11

Motor Power Low Overload [kW]

15

Dimensions WxHxD [mm] net

144 X 419 X 214

Dimensions WxHxD [mm] Gross

190 X 477 X 257

Dimensions WxHxD [mm]

144X419X214

Continuous Current (NO) [A]

31

Motor Power HP Low Overload

20

Typecode Part 1

70-AB3L00315W05B520BM2H

Typecode Part 2

-00048517

Stockcode part 1

70-AB3L00315W05B520BM2H

Stockcode part 2

-00048517

check if complete

OK

Vendor

ERR01

Cannot Determine Vendor

Recommended Factory

ERR01

Cannot Determine Vendor

Help Counter

10

Help Counter

2

Calculated Net Weight

10

Sub family identification

NONE

Normal customer ordered

Recommended Plant

ERR01

ECCN US

3A999.a

ECCN EU

Y901
