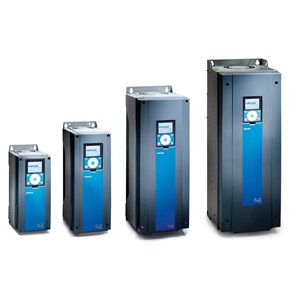

BIẾN TẦN VACON0100-3L-0003-2-FLOW, 0,55KW - C/N 135N0443

Gross weight

6.3 kg

Net weight

6 kg

Volume

0 l

EAN

5710108165987

Product View (Switch)

GLBL

Global (Standard)

Segment

-FLOW

VACON 100 FLOW

Region Code

-R00

R00 International

Mains voltage

-2

208–240 Vac

Current rating

-0003

3 Amp

Installation options

-DM

DM Drive Module

Enclosure

+IP21

IP21/NEMA1

Control panel

+HMGR

Graphical Keypad MK01

EMC emission limit category

+EMC2

C2 Commercial&Industry Environ

Common mode filter (for DM)

+P000

No Option

DUT filter (for DM)

+P000

No Option

Brake chopper

+DBNO

No dynamic braking device

Real time clock option

+SRNO

No Battery for real time clock

Configurable power range

NONE

None

Power connections

+P000

No Power options (+P000)

Cable entry

+QGLM

Metric conduit plate

Additional Equipment B

+Q000

No option for Qxxx_B (+Q000)

Additonal Equipment C

+Q000

No additonal option for Qxxx_C

Shipping package

+GSCB

Cardboard Box as Shipping pack

Marine construction

+E000

no option

B-Slot Option Board

+SBF3

F3,3 Relay board

C- Slot Option Board

+SC00

No board

D-Slot Option Board

+SD00

No board

E-Slot Option Board

+SE00

No board

Internal FB selection

+FBM1

Std protocol,Modbus,N2,BacNet

Documentation level

+DQCK

Quick Guide

Document language preference

+DLUK

English

Firmware Language Pack

+FL01

UK, DE, FI, SE, IT, FR lang

Application

+A0000

No Application

Parameter Set

+L0000

No application parameter set

Motor parameter default freq

+LS50

50 Hz def motor freq settings

Unit for measure for display

+LSSI

Metric Units of Measure

Labeling options

+LPC1

no additional labels

UL approval

+GAUL

UL Approval (+GAUL)

Marine approval

NONE

None

RCM Approval

+GACT

RCM Approval N16307

KC approval

+GAKC

KC Approval

Ukrainian approval

+GAUA

Ukrainian Approval

EAC Approval

+GAEA

EAC Approval

Auxilary power supply

+C000

no option

DC power supply for aux device

+C000

no option

AC socket for aux devices

+C000

no option

Input Devices

NONE

none_

Common mode filter (for ED)

+P000

no option

DU/DT, Sine filter (for ED)

+P000

no option

Terminal Options

NONE

none_

Door Equipments

+C000

no option

Cabinet heater

+C000

no option

Cabinet light

+C000

no option

Motor heater control

+C000

no option

Emergency stop options

+C000

no option

Insulation fault sensor

+C000

no option

Cabling from top

+C000

no option

Back channel cooling

+C000

no option

Cabinet Plinth

+C000

no option

Empty extension segment

NONE

None

Standardized cabinet solution

NONE

None

Engineered cabinet solution

NONE

None

Product Group

VACON

VACON

Product Series

0100

Vacon 100 series

Phase

-3L

3 Phase AC Input

Customized

+BM2H

Vacon 100-FLOW

Main Circuit

+M000

NONE

Firmware

+F0159

Vacon0100-Flow Software pack

Max output frequency

NONE

None

Terminal Box

+T000

NONE

Bypass Control Operation Mode

NONE

none_

Bypass Input Type

NONE

none_

Bypass power connection type

NONE

none_

CE approval

+GACE

CE Approval (+GACE)

ATEX Approval

NONE

None

County Specific Approval

NONE

None

Warrenty time

+WT01

Warranty 12/18 months (+WT01)

Frame Size

MR04

Frame 04

Product Catalog

NO_VIEW

NO VIEW

Modelcode01

VACON0100-3L-0003-2

Modelcode02

-FLOW

Calculated Net Weight [kg]

6

Calculated Gross Weight [kg]

7

Motor Power Low Overload [kW]

0,55

Dimensions WxHxD [mm] net

128 X 328 X 190

Dimensions WxHxD [mm] Gross

175 X 384 X 232

Continuous Current (NO) [A]

3,7

Motor Power HP Low Overload

0,75

Typecode Part 1

70-AB3L00032W04B220BM2H

Typecode Part 2

-00050389

check if complete

OK

Plant from Orderline

D801

Vendor

ERR01

Cannot Determine Vendor

Recommended Factory

ERR01

Cannot Determine Vendor

Help Counter

5

Help Counter

2

Sub family identification

NONE

Normal customer ordered

ECCN US

3A999.a

ECCN EU

Y901
