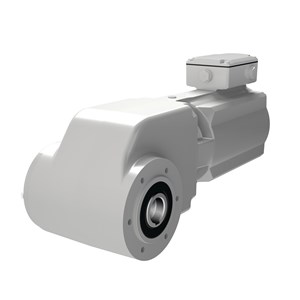

OGDSK208K121401L09RXTB1P3S9010H1BXXXXXXX - C/N 131Z5075
OGDSK208K121401L09RXTB1P3S9010H1BXXXXXXX
VLT® OneGearDrive
Standard, 1.5 - 3.0 KW,
8.12, 40 mm, Mild steel,
Without CSA/UL, Vertical, motor up, Without brake,
Terminal Box
Model code:OGDSK208K121401L09RXTB1P3S9010H1BXXXXXXX
Product details
|
Gross weight |
30 kg |
||
|
Net weight |
29 kg |
||
|
Volume |
0.546 hl |
||
|
EAN |
5710107347292 |
VLT® ONEGEARDRIVE SERIES
|
Product View (Switch) |
GLBL |
Global (Standard) |
|
|
Product Group |
OGD |
VLT® OneGearDrive® |
|
|
Product Variant |
S |
Standard |
|
|
Gear Type |
K |
Bevel Gear |
|
|
Size |
2 |
V210 |
|
|
Gear Ratio |
08K12 |
8.12 |
|
|
Output Shaft Design |
1 |
Hollow shaft |
|
|
Output Shaft Size |
40 |
40 mm |
|
|
Output Shaft Material |
1 |
Mild steel |
|
|
Motor Size |
L09 |
1.5 - 3.0 KW |
|
|
Reserved RX |
RX |
Reserved X |
|
|
Motor Connection |
TB |
Terminal Box |
|
|
Connector Position |
1 |
Top |
|
|
Installation Position |
P3 |
Vertical, motor up |
|
|
Surface Coating |
S |
Standard |
|
|
RAL Color Code |
9010 |
Standard white |
|
|
Lubricants |
H1 |
Food grade oil |
|
|
Brake |
BXXX |
Without brake |
|
|
CSA / UL |
X |
Without CSA/UL |
|
|
Reserved A |
X |
Reserved A |
|
|
Reserved B |
X |
Reserved B |
|
|
Reserved C |
X |
Reserved C |
|
|
Typecode Part 1 |
OGDSK208K121401L09RXTB1P3 |
||
|
Typecode Part 2 |
S9010H1BXXXXXXX |
||
|
Product Catalog |
NO_VIEW |
NO VIEW |
|
|
Modelcode01 |
OGDSK208K121401L09RXTB1P3 |
||
|
Modelcode02 |
S9010H1BXXXXXXX |
||
|
Calculated Gross Weight [kg] |
30 |
||
|
Calculated Net Weight [kg] |
29 |
||
|
Vendor |
ERR01 |
Cannot Determine Vendor |
|
|
Recommended Factory |
ERR01 |
Cannot Determine Vendor |
|
|
Recommended Plant |
ERR01 |
