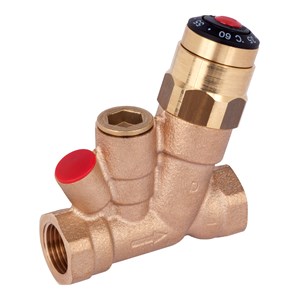

VAN CÂN BẰNG NHIỆT DANFOSS MTCV, Version: A, DN 15 - C/N 003Z4515

Gross weight

0.57 Kilogram

Net weight

0.56 Kilogram

Volume

0.554 Liter

EAN

5710104092102

China RoHS compliance

Out of scope

Connection types

Internal thread

Description

MTCV DN 15, A version, multifunctional thermostatic circulation valve

Differential pressure over the valve [kPa] [Max]

100 KPa

Disinfection function

No

EU RoHS compliance

Out of scope

Factory setting [°C]

50 °C

In scope of WEEE and contain batteries

No

Kvs values [m³/h]

1.5 m³/h

Media temperature [°C] [Max]

100 °C

Pressure class

PN 10

Product group

Hot water balancing

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

583eb573-86ef-490a-9e9e-7ef8c77b52d8

SCIP dossier product name

MTCV Version A

Temperature setting range [°C] [Max]

60 °C

Temperature setting range [°C] [Min]

35 °C

Type

MTCV

UK RoHS compliance

Out of scope

Valve body material

Rg5

Valve size

DN 15

Version

A
