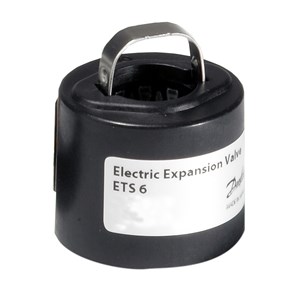

CUỘN VAN TIẾT LƯU ĐIỆN DANFOSS COIL ETS 6 - C/N 034G5115

Gross weight

0.138 Kilogram

Net weight

0.11 Kilogram

Volume

0.491 Liter

EAN

5702428825467

Approval

CQC; EAC; LLC CDC TYSK; RoHS; UL

Cable length [in]

27.5 in

Cable length [m]

0.7 m

China RoHS compliance

Yes

Class of Insulation

E

Coil resistance [Ohm]

46

Compatible Danfoss controllers

EIM 336; EKD 316; EKD 316C; EKE 1A; EKE 1B; EKE 1C; EXD 316

Current range [A]

0.26 A

Electrical connector

JST XHP-5

Enclosure rating IP

IP66

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Identical product

034G5110

In scope of WEEE and contain batteries

No

Packing format

Multi pack

Parts Program name

ETS 6

Power consumption [W]

3 W

Product accessories

Electric valve accessories

Product group

Expansion valves

Product Name Description

Elec. expansion valve coil

Protection tube length [mm]

600 mm

Quantity per packing format

10 pc

REACH Candidate List substances

Trixylyl phosphate (CAS no. 25155-23-1)
Bisphenol A (BPA, CAS no. 80-05-7)

SCIP dossier no.

f5d8f281-1004-4fb6-9f5a-6febaff329a2

SCIP dossier product name

Electric control valve coil(8)

Serviceable

No

Supply voltage [V] DC

12 V

Type

ETS 6

UK RoHS compliance

Yes

UL Class

UL CLASS 105 (A)

Used for product

ETS 6
