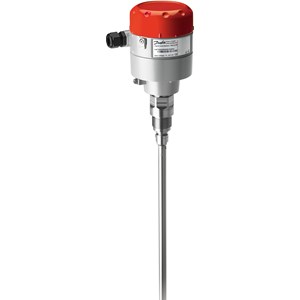

CẢM BIẾN DANFOSS AKS 4100-1200 Liquid level transmitter - C/N 084H4506

Mã sản phẩm: 084H4506

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN DANFOSS AKS 4100-1200 Liquid level transmitter - C/N 084H4506

Product details

Ambient temperature range [°C] [max]	80 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	176 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	CE; EAC; LLC CDC TYSK; UKCA
China RoHS compliance	Out of scope
Connection size [in]	1
Connection type	G
Design	Coaxial version
Enclosure rating IP	IP67
EU RoHS compliance	Out of scope
In scope of WEEE and contain batteries	No
Insertion length [in]	47.2 in
Insertion length [mm]	1200 mm
Load resistance max. [Ohm]	500
Max. Working Pressure [bar]	100 bar
Max. Working Pressure [psig]	1450 psig
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Packing format	Single pack
Parts included	HMI not included
Power consumption [W]	0.7 W
Product accessories	Liq. level switch accessories
Product description	Liquid Level Sensor
Product group	Sensors
Product Name Description	Liquid level sensor
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A
Serviceable	Liq. level switch spare parts
Supply voltage [V] DC [max]	30 V
Supply voltage [V] DC [max]	30 V
Supply voltage [V] DC [min]	14 V
Supply voltage [V] DC [min]	14 V
Temperature range [°C] [max]	100 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	212 °F
Temperature range [°F] [min]	-76 °F
Type	AKS 4100
UK RoHS compliance	Out of scope
