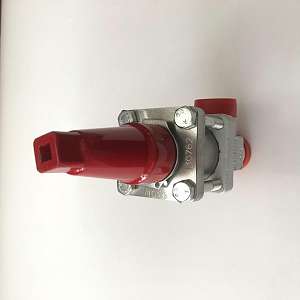

VAN DANFOSS OFV 25A - C/N 2412+186

Mã sản phẩm: 2412+186

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN DANFOSS OFV 25A - C/N 2412+186

Product details

Approval	EAC LLC CDC TYSK
China RoHS compliance	Out of scope
Colour Paint	Gray
Connection size [in]	1 in
Connection size [mm]	25 mm
Connection standard	ASME B 36.10M SCHEDULE 80
Connection type	Butt weld
Cv value [gal/min] [max]	1.744 gal/min
Cv value [gal/min] [min]	0 gal/min
Direction	Angleway
Equipment	Cap
Fluid Group	1
In scope of WEEE and contain batteries	No
Inlet connection size [mm]	25 mm
Kv value [m³/h] [max]	1.5 m³/h
Kv value [m³/h] [min]	0 m³/h
Max. Working Pressure [bar]	40 bar
Max. Working Pressure [psig]	580 psig
Packing format	Single pack
PED category	Art. 3, par. 3
Pressure range [bar] Pe [max]	8 bar
Pressure range [bar] Pe [min]	2 bar
Pressure range [psig] Pe [max]	116 psig
Pressure range [psig] Pe [min]	2 psig
Product accessories	No
Product description	Overflow Valve
Product group	Press. and temp. regul. valves
Product Name Description	Pressure regulating valve
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507A R717 R744
Serviceable	Press. regul. valve spare part
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	-58 °F
Type	OFV 25
UK RoHS compliance	Out of scope
