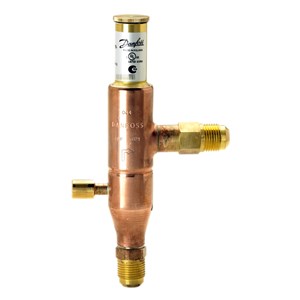

VAN DANFOSS KVP 15 - C/N 034L0022

Gross weight

0.468 Kilogram

Net weight

0.415 Kilogram

Volume

1.176 Liter

EAN

5702428411875

Approval

C UL US LISTED
EAC
LLC CDC TYSK

Approval file name

REFRIGERANT VALVE 53R0

China RoHS compliance

Yes

Cv value [gal/min]

2.9 gal/min

Equipment

Schrader valve access port

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Factory setting [bar]

2 bar

Factory setting [psig]

29 psig

Flow direction indicator

Engraved 1-way arrow

In scope of WEEE and contain batteries

No

Inlet connection type

Flare

Inlet size [in]

5/8 in

Inlet size [mm]

16 mm

Kv value [m³/h]

2.5 m³/h

Kv value note

AT MAX P-BAND

Lubricants compatibility

Oilfree applications

Max. test pressure [bar]

19.8 bar

Max. test pressure [psig]

286 psig

Max. Working Pressure [bar]

18 bar

Max. Working Pressure [psig]

260 psig

Medium temperature range [°C] [max]

130 °C

Medium temperature range [°C] [min]

-45 °C

Medium temperature range [°F] [max]

266 °F

Medium temperature range [°F] [min]

-49 °F

Oil free refrigerants

R1234ze(E)
R513A

Other RoHS documentation

EAEU RoHS

Outlet connection type

Flare

Outlet size [in]

5/8 in

Outlet size [mm]

16 mm

P band max. [bar]

1.7 bar

P band max. [psi]

24.6 psi

Packing format

Multi pack

Product accessories

No

Product group

Press. and temp. regul. valves

Product Name Description

Evaporator pressure regulator

Quantity per packing format

12 pc

Rated cap. R404A/R507A [kW]

3.6 kW

Rated cap. R404A/R507A [TR]

1.2 TR

Rated capacity R134a [kW]

2.8 kW

Rated capacity R134a [TR]

0.9 TR

Rated capacity R22 [kW]

4 kW

Rated capacity R22 [TR]

1.3 TR

Rated capacity R407C [kW]

3.7 kW

Rated capacity R407C [TR]

1.2 TR

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R1234yf
R1234ze(E)
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R448A
R449A
R449B
R450A
R452A
R454A
R454C
R455A
R507A
R513A
R515B
R516A

Regulation range [bar] [max]

5.5 bar

Regulation range [bar] [min]

0 bar

Regulation range [psig] Pe [max]

80 psig

Regulation range [psig] Pe [min]

0 psig

SCIP dossier no.

842c526f-b213-4baa-869c-a91bb999a318

Serviceable

KV valves spare parts

Type

KVP 15

UK RoHS compliance

Out of scope

UL approved refrigerants

R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B
R516A
