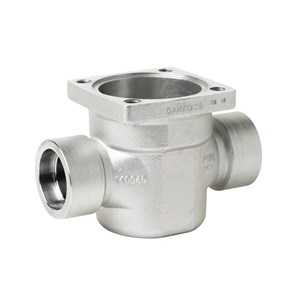

THÂN VAN DANFOSS ICV 25 - C/N 027H2120

Gross weight

1.7 Kilogram

Net weight

1.496 Kilogram

Volume

3.513 Liter

EAN

5702428243032

Approval

EAC

Body material

Steel

Brand

ICV Flexline

Connection material

Steel

Connection size [in]

1 in

Connection size [mm]

25 mm

Connection standard

EN 10220

Connection type

Butt weld

Flow direction indicator

Embossed 1-way arrow

In scope of WEEE and contain batteries

No

Max. Working Pressure [bar]

65 bar

Max. Working Pressure [psig]

943 psig

Packing format

Single pack

Parts Program name

ICLX
ICM
ICS

Product accessories

ICM / ICS / ICLX accessories

Product group

Multifunction valves

Product Name Description

Multifunction valve body

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R113
R114
R1233zd(E)
R1234yf
R1234ze(E)
R125
R1270
R1336mzz(Z)
R134a
R152a
R170
R22
R227ea
R23
R236fa
R290
R32
R401A
R402A
R402B
R404A
R407A
R407B
R407C
R407F
R407H
R408A
R409A
R410A
R417A
R421A
R422A
R422B
R422D
R427A
R438A
R444B
R447A
R448A
R449A
R449B
R450A
R452A
R454B
R455A
R502
R503
R513A
R600
R600a
R717
R744
RE170
R507A
R1150
R245fa
R413A
R442A
R447B
R452B
R454A
R454C
R463A
R512A
R513B
R515A
R515B
R516A
R508B

Serviceable

ICM / ICS / ICLX spare parts

Temperature range [°C] [max]

120 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

248 °F

Temperature range [°F] [min]

-76 °F

Type

ICV 25

Used for product

ICM 25
ICS 25

Valve operation

Function module
