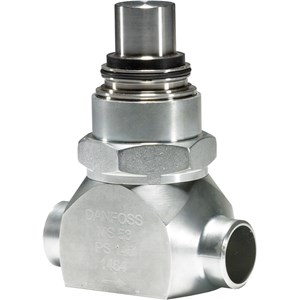

VAN DANFOSS ICMTS 20B, Steel - C/N 027H0186

Mã sản phẩm: 027H1086

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

VAN DANFOSS ICMTS 20B, Steel - C/N 027H0186

Product details

Application area	Transcritical CO2 systems
Approval	CE CRN EAC LLC CDC TYSK UKCA
Body material	Steel
China RoHS compliance	Out of scope
Compatible Danfoss controllers	EKC 326A
Connection material	Steel
Connection standard	EN 10220
Cv value [gal/min]	2.78 gal/min
Direction	Straightway
EU RoHS compliance	Out of scope
Flow direction indicator	Embossed 1-way arrow
Fluid Group	1
In scope of WEEE and contain batteries	No
Inlet connection size [in]	1 in
Inlet connection size [mm]	25 mm
Inlet connection type	Butt weld
Kv value [m³/h]	2.4 m³/h
Manual operation option	Via ICAD setting Via Multifunction tool
Max. Working Pressure [bar]	140 bar
Max. Working Pressure [psig]	2030 psig
MaxOPD [bar]	90 bar
MaxOPD [psig]	1305 psig
Open/close time [s]	3 s
Outlet connection size [in]	1 in
Outlet connection size [mm]	25 mm
Outlet connection type	Butt weld
Packing format	Single pack
Parts Program name	ICMTS
PED category	Art. 4, par. 3
Product accessories	ICAD accessories ICM / ICS / ICLX accessories
Product description	High press. exp. motor valve
Product group	Expansion valves
Product Name Description	Motor operated valve
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R744
Serviceable	ICMTS spare parts
Temperature range [°C] [max]	120 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	248 °F
Temperature range [°F] [min]	-76 °F
Type	ICMTS 20B
UK RoHS compliance	Out of scope
Valve operation	Direct
